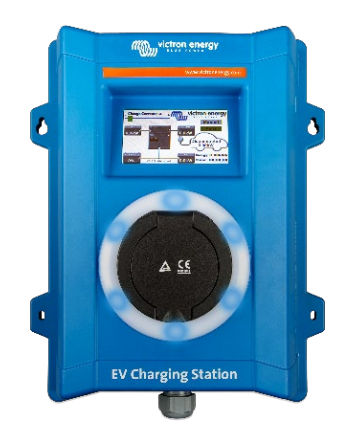

Victron 22 kW EVC300400300

Potenza: 22 kW
Fasi: 3‑fasi
Disponibilità: Disponibile
: Numero di offerte: 15
Ordine minimo: 1 pz.

Download

PDF Scheda tecnica — evc300400300 0,2 MB

Prezzo netto in base alla quantità

da 365,36 €

I prezzi per scaglioni di quantità sono visibili alle aziende registrate.

Per ora non paga nulla. Il costo di trasporto viene quotato dopo l'invio dell'ordine e richiede la Sua accettazione.

Descrizione

Stazione di ricarica AC Victron EVC300400300 da 22 kW, trifase, presa, connettore Tipo 2. Grado di protezione IP IP44, temperatura di esercizio da −25 a 50 °C, corrente nominale 32 A. Comunicazione: Modbus TCP over WiFi, Bluetooth. Dimensioni 377 × 148 × 148 mm (A × L × P), peso 3 kg.

Informazioni del produttore

High power EV Charging Station The EV Charging Station has three-phase and single-phase capabilities. It delivers a maximum of 22 kW AC in three-phase or 7.3 kW in single-phase mode. WiFi Communication WiFi: 802.11 b/g/n for configuration, monitoring and control. The internal WiFi module can be configured in Access Point or Station mode for both the initial setup and monitoring. Easy operation and control via Bluetooth and the VictronConnect App Get full control and overview of all operating parameters and session statistics at a glance. LCD Touch Screen Built-in 4.3-inch LCD Touch Screen for monitoring and control. Light Ring for fast viewing the device state Fully programmable RGB Light Ring around charging port, to quickly determine the device state. It can be programmed from the integrated web interface to display different light effects based on the current state (disconnected, charging, charged etc.). Three working modes available: 1. Manual Mode to configure output current Manual mode allows configurable output current between 6-32 A. The charging power is controlled in two ways: by using the slider on the LCD touch screen or by using its web page. It allows to manually start or stop the charging process when a vehicle is connected to the charging station. 2. Automatic Mode to ensure maximum PV system efficiency Detects when excess power is available and uses only that power to charge the vehicle. 3. Scheduled Mode to charge the EV at certain time intervals A fully programmable scheduler allows charging at different time intervals, for example at certain times during the night when grid energy is cheaper. Integration with GX devices and VRM Control and monitor the EV Charging Station from a GX device touch display and the Remote Console and the VRM Portal. The VRM Portal also offers real time and custom reports for configurable time periods.

Dati tecnici

Dimensioni e peso

Profondità	148 mm
Altezza	377 mm
Larghezza	148 mm
Lunghezza	307 mm
Peso	3 kg

Dettagli del prodotto

Serie	EV Charging Station – 22 kW
Range della tensione di carica	170-265 V
Grado IP	IP44
Corrente nominale (configurabile)	32 A
Range di temperatura di esercizio	-25-50 °C
Comunicazione	Modbus TCP over WiFi, Bluetooth
