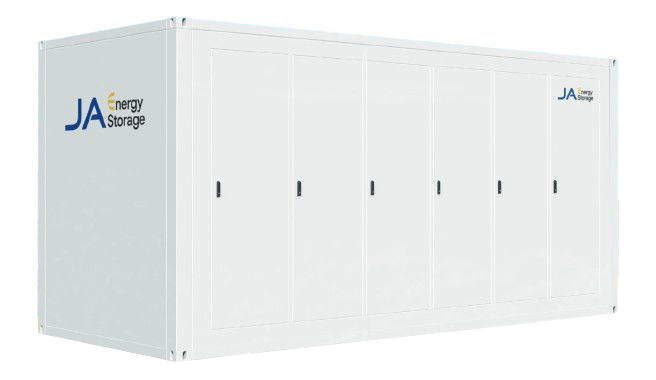

JA Energy Storage 5 015 kWh JAG-BS-0.5CP-5015kWh

Capacitate: 5 015,0 kWh
Disponibilitate: La comandă
Comandă minimă: 1 buc.

De descărcat

PDF Fișă tehnică — jag-bs-05cp-5015kwh 2,8 MB

Preț la cerere

Vom verifica disponibilitatea și vă vom comunica această informație.

Acum nu plătiți nimic.

Descriere

Advantages Cost-effectiveness Single side access door design, back-to back or side-by-side layout design can reduce the footprint by 32% Compared to the previous liquid cooling system, energy density increases by 49% High Efficiency Smart liquid cooling system with the cell operating temperature 35 °C, cell temperature difference < 3 °C, and auxiliary power consumption reduced by 10% Rack-level management enables individual rack control for high system efficiency Ultimate Safety LFP battery cells for safety and extended lifespan Pack level & Container level Aerosol to ensure system safety Smart & Convenient Cloud-based health status assessment with dynamic energy efficiency management strategy adjustment ■Intelligent fault-handling recommendations with field maintenance and inspection support

Date tehnice

Detalii produs

Serie	JAG-BS-0.5CP-5015kWh
BMS inclus	Da
Tensiune min.	1 164,8 V
Tensiune max.	1 497,6 V
Grad de protecție IP	IP55
Temperatură max. de încărcare / descărcare	50 °C
Temperatură min. de încărcare / descărcare	-30 °C
Protocol de comunicare	CAN, RS485, Ethernet
Tip de sistem (HV / LV)	Înaltă tensiune (HV)
