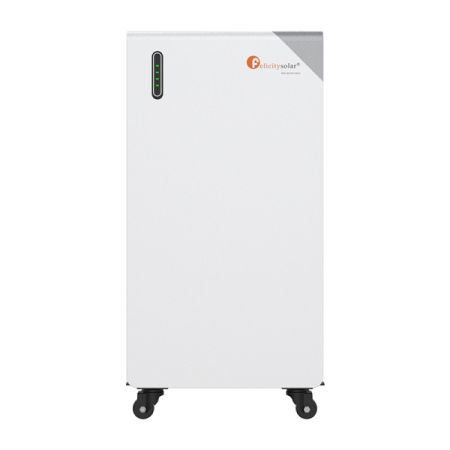

Felicity 16 kWh FLB48314TG1-H

Felicity 16 kWh FLB48314TG1-H

Capaciteit
16,0 kWh
Beschikbaarheid
Op voorraad
Aantal aanbiedingen: 25
Minimale bestelhoeveelheid
1 st.
Incoterms
CIF, EXW, FCA

Nettoprijs per hoeveelheid

vanaf 1 513,16 €

Prijzen per hoeveelheidstrap zijn zichtbaar voor geregistreerde bedrijven.

U betaalt nu niets. De transportkosten berekenen wij na het plaatsen van de bestelling; deze vereisen uw akkoord.

Beschrijving

Batterijmodule Felicity FLB48314TG1-H met een capaciteit van 16 kWh, LiFePO4 (LFP), laagspanning (LV), spanning 51,2 V. Werkspanning 44,8–57,6 V, ontladingsdiepte 95%, communicatie RS485/CAN, IP-klasse IP65. Toepassing: residentieel. Afmetingen 895 × 235 × 450 mm (h × b × d), gewicht 121 kg, garantie 10 jaar.

Informatie van de fabrikant

"Remote monitoring of battery pack data via built-in WiFi/Bluetooth. LiFePO4: Higher safe performance and longer cycle life. High-rate charging/discharging delivers fast energy flow and sustained power. CCS welding lowers battery internal resistance for enhanced performance. Equipped with an aerosol fire extinguishing system. Scalable expansion up to 32 pcs in parallel. Multiple Protection with built-in smart BMS, breaker and fuse. Compatible with leading inverter brands. Resist harsh environment with IP65-rate protection. Easily replace the battery fuse when it blows."

Technische gegevens

Productdetails

SerieFLB Series
Garantie10 jaar
Systeemtype (HV / LV)Laagspanning (LV)
Min. spanning44,8 V
Max. spanning57,6 V
Ontladingsdiepte (DoD)95 %
IP-beschermingsklasseIP65
Max. laad-/ontlaadtemperatuur55/55 °C
Min. laad-/ontlaadtemperatuur1 °C
CommunicatieprotocolRS485/CAN

Hoofdparameters

Capaciteit16 kWh
Accuspanning51,2 V
CeltechnologieLiFePO4 (LFP)
ToepassingResidentieel

Afmetingen en gewicht

Hoogte895 mm
Breedte235 mm
Lengte450 mm
Gewicht121 kg
