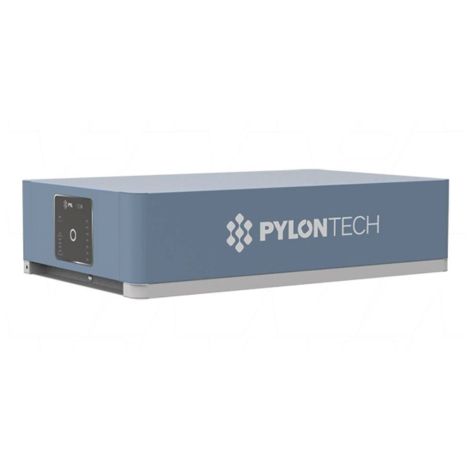

Pylontech 21,31 kWh Force-H1

Pylontech 21,31 kWh Force-H1

Capacité
21,3 kWh
Disponibilité
En stock
Nombre d’offres : 2
Commande minimale
1 pièces
Incoterms
CIF, EXW, FCA

Prix net selon la quantité

à partir de 6 347,00 €

Les prix par paliers de quantité sont visibles pour les entreprises inscrites.

Vous ne payez rien pour l’instant. Nous chiffrons le coût du transport après l’envoi de la commande ; il est soumis à votre acceptation.

Description

Kit de batteries Pylontech Force-H1 d'une capacité de 21,31 kWh, LiFePO4 (LFP), haute tension (HT), tension 288 V. Communication CANBUS/Modbus RTU, indice IP IP65, profondeur de décharge 90 %. Application: commercial et industriel (C&I), rendement 96 %. Dimensions 1210 × 600 × 380 mm (H × L × P), poids 230 kg, garantie 10 ans.

Informations du fabricant

PYLONTECH FORCE-H1/H2 The Force H1/H2 is the latest version of High voltage battery storage system provided by Pylontech. The newly designed system provides easy connector to save valuable time for installaters. The stacking system provides flexible configurations from 96V to 384V voltage and 7.1 kWh to 24.86 kWh capacity. The white/black steel color reflcts the strong capability of holding energy. The indoor/outdoor compatiable feature provides more possiblities of installation. Ideal for large home and small commercial application.

Caractéristiques techniques

Détails du produit

SériePylontech Force-H1 H2
Garantie10 ans
Profondeur de décharge (DoD)90 %
Indice IPIP65
Rendement96 %
Protocole de communicationCANBUS/Modbus RTU
Type de système (HT / BT)Haute tension (HT)

Caractéristiques principales

Capacité21,31 kWh
Tension de la batterie288 V
Technologie des cellulesLiFePO4 (LFP)
ApplicationCommercial et industriel (C&I)

Dimensions et poids

Hauteur1210 mm
Largeur600 mm
Longueur380 mm
Poids230 kg
