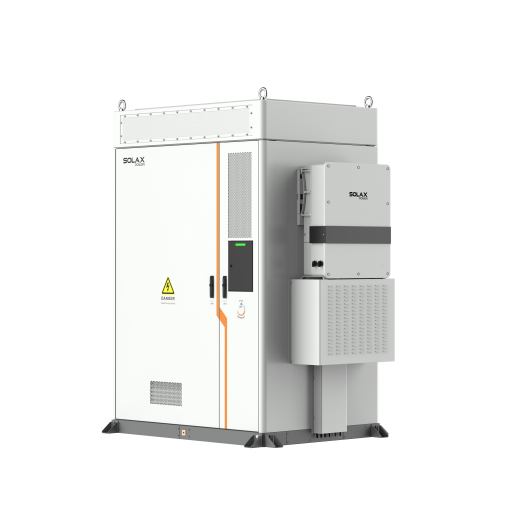

SolaX 200 kWh AELIO-P60B200

SolaX 200 kWh AELIO-P60B200

Capacité
200,0 kWh
Disponibilité
En stock
Nombre d’offres : 5
Commande minimale
1 pièces
Incoterms
EXW

Téléchargements

Prix net selon la quantité

à partir de 43 166,20 €

Les prix par paliers de quantité sont visibles pour les entreprises inscrites.

Vous ne payez rien pour l’instant. Nous chiffrons le coût du transport après l’envoi de la commande ; il est soumis à votre acceptation.

Description

Système de stockage d'énergie SolaX AELIO-P60B200 d'une capacité de 200 kWh, LiFePO4 (LFP), haute tension (HT). Tension de service 560–817,6 V, indice IP IP55. Application: grande échelle (BESS), tension de la batterie 716,8 V. Dimensions 1200 × 2420 × 2070 mm (H × L × P), poids 2800 kg.

Informations du fabricant

Aelio series is a highly integrated, all-in-one, C&I Hybrid energy storage cabinet with multiple application scenarios. It has outstanding advantages such as intelligent charge and discharge management, safety and reliability, and simple operation and maintenance. First of all, Aelio cabinet uses high-density, high-safety, and high-performance LFP batteries. There are two models with capacity of 100kWh and 200kWh. When used in a single cabinet or multiple cabinets, it can charge and discharge stably according to the set working modes at different time periods, and the large-capacity battery cell of 280Ah also reduces the intial cost of the system. Secondly, the cabinet is equipped with a self-developed Energy Management System (EMS) that can monitor the working status and abnormal alerts of each battery cell, PCS, and fire protection system in real-time. The local data storage capability allows for data analysis and verification for up to 1 year. The advanced EMS system also has leading advantages in intelligent control of different smart operation strategies, autonomous scheduling based on local electricity prices, and comprehensive management of photovoltaic, energy storage systems, EV charging and generators at power plant level. These features improve the overall system efficiency and shorten the investment return period. In addition, the cabinet also has multiple safety protection measures. It has built-in protection functions such as overvoltage, overcurrent, and overtemperature. It is also equipped with fireproof materials and 4 levels of fire protection system, which can promptly detect and respond to potential fire risks, effectively control the spread of fires and reduce the risk of safety accidents. The cabinet is suitable for various C&I PV&ESS scenarios, including peak shaving, demand response, backup mode, photovoltaic and energy storage integration, and stable load consumption curves. It also supports applications such as virtual power plants(VPP) and frequency regulation.

Caractéristiques techniques

Détails du produit

SérieAELIO
Tension min.560 V
Tension max.817,6 V
Indice IPCabinet: IP55; Inverter: IP66
Type de système (HT / BT)Haute tension (HT)

Caractéristiques principales

Capacité200 kWh
Tension de la batterie716,8 V
Technologie des cellulesLiFePO4 (LFP)
ApplicationGrande échelle (BESS)

Dimensions et poids

Hauteur1200 mm
Largeur2420 mm
Longueur2070 mm
Poids2800 kg
