Price on request
We will check availability and get back to you with this information.
Nothing to pay now.

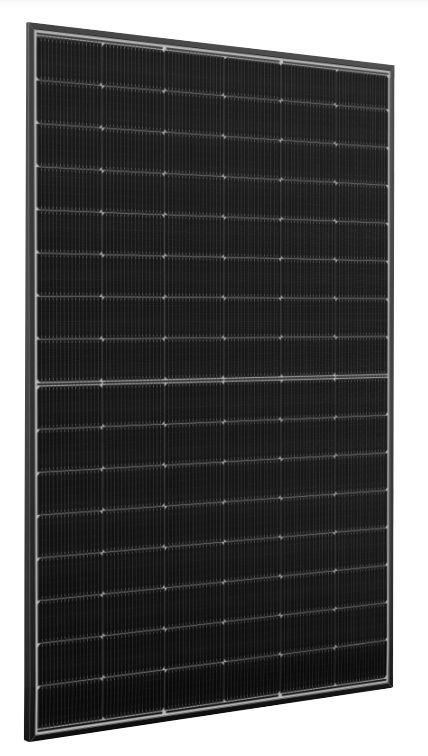

PV module Risen RSM96-11-435BNDG rated 435 Wp. Cells: N-type (96 pcs), bifacial, black frame, module efficiency 21.8% (STC). Product warranty 15 years, power warranty: 87.4% after 30 years. Dimensions 1762 × 1134 × 30 mm (H × W × D), weight 21 kg.
| Series | RSM96-11-435-455BNDG |
|---|---|
| Series power range | 435-455 Wp |
| Warranty | 15 years |
| Power warranty — point 1 (years, % output) | 30, 87.4 |
| Voltage at max. power Vmpp (STC) | 29.3 V |
| Current at max. power Impp (STC) | 14.85 A |
| Open-circuit voltage Voc (STC) | 34.77 V |
| Short-circuit current Isc (STC) | 15.9 A |
| Module efficiency (STC) | 21.8 % |
| Temperature coefficient of Pmax | -0.29 %/°C |
| Temperature coefficient of Voc | -0.25 %/°C |
| Temperature coefficient of Isc | 0.046 %/°C |
| Max. system voltage | 1500 V |
| Max. series fuse rating | 35 A |
| Number of cells | 96 |
| Glass type | Heat-strengthened glass with anti-reflective coating |
| Frame | Anodised aluminium alloy |
| Bypass diodes | 3 |
| Junction box IP rating | IP68 |
| Connector type | Risen Twinsel PV-SY02 |
| Cable cross-section | 4 mm² |
| Cable length | 1200 mm |
| Cell technology | Front contact |
| Module power | 435 Wp |
|---|---|
| Cell type | N-type |
| Frame colour | Black frame |
| Module type | Bifacial |
| Height | 1762 mm |
|---|---|
| Width | 1134 mm |
| Depth | 30 mm |
| Weight | 21 kg |
