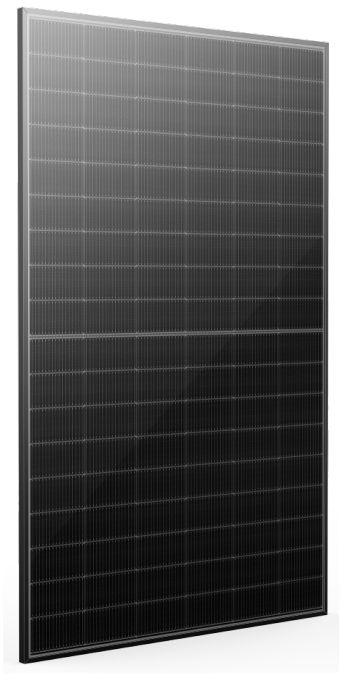

PV module Risen RSM108-9-425BNDG rated 425 Wp. Cells: N-type, monofacial, black frame, module efficiency 21.8% (STC). Product warranty 12 years, power warranty: 89.4% after 25 years and 87.4% after 30 years. Dimensions 1722 × 1134 × 30 mm (H × W × D), weight 20.5 kg.
| Series | RSM108-9-415-440BNDG |
|---|---|
| Series power range | 415-440 Wp |
| Warranty | 12 years |
| Power warranty — point 1 (years, % output) | 25, 89.4 |
| Power warranty — point 2 (years, % output) | 30, 87.4 |
| Voltage at max. power Vmpp (STC) | 32.78 V |
| Current at max. power Impp (STC) | 12.99 A |
| Open-circuit voltage Voc (STC) | 39.07 V |
| Short-circuit current Isc (STC) | 13.86 A |
| Module efficiency (STC) | 21.8 % |
| Temperature coefficient of Pmax | -0.29 %/°C |
| Temperature coefficient of Voc | -0.25 %/°C |
| Temperature coefficient of Isc | 0.046 %/°C |
| Max. system voltage | 1500 V |
| Max. series fuse rating | 30 A |
| Number of cells | 108 |
| Glass type | High Transmission, Low Iron, AR Coated Heat Strengthened Glass |
| Bypass diodes | 3 |
| Junction box IP rating | IP68 |
| Connector type | Risen Twinsel PV-SY02 |
| Cable cross-section | 4 mm² |
| Cable length | 1200 mm |
| Cell technology | Front contact |
| Module power | 425 Wp |
|---|---|
| Cell type | N-type |
| Frame colour | Black frame |
| Module type | Monofacial |
| Height | 1722 mm |
|---|---|
| Width | 1134 mm |
| Depth | 30 mm |
| Weight | 20.5 kg |
