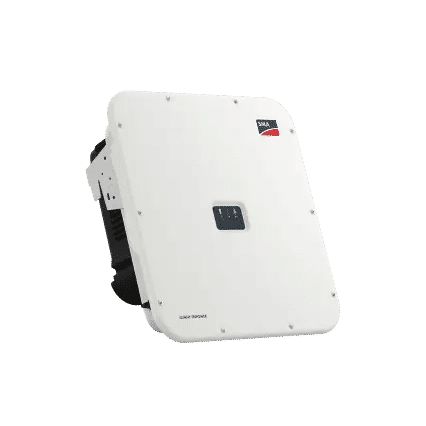

SMA 25 kW Sunny Tripower X25

Potencia: 25 kW
Fases: 3‑fases
Disponibilidad: En stock
: Número de ofertas: 20
Pedido mínimo: 1 uds.
Incoterms: CIF, EXW, FCA

Descargas

PDF Ficha técnica — sma-sunny-tripower-x25 1,5 MB

Precio neto según la cantidad

desde 1 925,00 €

Los precios por tramos de cantidad son visibles para las empresas registradas.

Por ahora no paga nada. El coste del transporte se cotiza tras realizar el pedido y requiere su aceptación.

Descripción

Inversor de conexión a red (on-grid) SMA Sunny Tripower X25 de 25 kW, trifásico, 3 MPPT. Tensión CC máx. 1000 V, eficiencia máxima 98,2 %, eficiencia europea 98 %. Grado IP IP65, temperatura de funcionamiento de −25 a 60 °C. Dimensiones 762 × 728 × 266 mm (alt. × anch. × prof.), peso 35 kg, garantía 5 años.

Información del fabricante

The new Sunny Tripower X is the innovative system solution for commercial and large home PV systems. The integrated System Manager function with direct access to Sunny Portal powered by ennexOS monitors up to five SMA inverters and one energy meter. This enables the dynamic closed-loop control of active and reactive power via SMA Dynamic Power Control. Thanks to the wide input voltage range and the high input current capability, it is compatible with the latest generation of highperformance PV modules. The innovative enclosure design ensures efficient cooling of the electronic components and thus guarantees maximum lifetime of the Sunny Tripower X. Commissioning can be performed quickly and easily as well as centrally for all devices in the system. During operation, users benefit from integrated software solutions: SMA ShadeFix increases PV yields even in the event of partial shading, while SMA ArcFix detects electric arcs effectively and can reliably reduce the risk of fire. Integrated system manager •Monitoring and control for up to 5 inverters (max. 135 kVA) included •Direct access to Sunny Portal powered by ennexOS •SMA Dynamic Power Control Safety included •SMA ArcFix arc-fault circuit interrupter •DC overvoltage protection •Simplified grid and PV system protection Maximum yields •Yield increase through integrated SMA ShadeFix •I-V generator diagnostics1) •Direct selling with SMA SPOT •SMA Smart Connected More flexibility •3 MPP trackers •High input current for high-performance PV modules •Modular design allowing expansion for future energy

Datos técnicos

Detalles del producto

Serie	sunny Tripower X
Garantía del producto	5 años
Rango de potencia CA de la serie	12-25 kW
Potencia CC máx.	37,5 kW
Tensión CC máx.	1000 V
Corriente CC máx.	24 A
Strings por MPPT	2
Entradas CC	6
Potencia CA máx.	25 kW
Rango de tensión de salida CA	176-275 / 304-477 V
Tensión CA nominal	230/400 V
Corriente CA máx.	36,6 A
Corriente CA nominal	36,2 A
Rango de frecuencia	44-56 / 54-66 Hz
Frecuencia	50/60 Hz
Factor de potencia	1 / 0 overexcited to 0 underexcited
Eficiencia máxima	98,2 %
Eficiencia europea	98 %
Rango de temperatura de funcionamiento	-25 ~ +60 °C
Grado de protección IP	IP65
Pantalla	LED
Funciones de protección	Short Circuit Protection, Overvoltage Protection, Residual Current Device (RCD), Reverse Polarity Protection, DC Load Disconnector, Ground Fault Monitoring, Grid Monitoring
