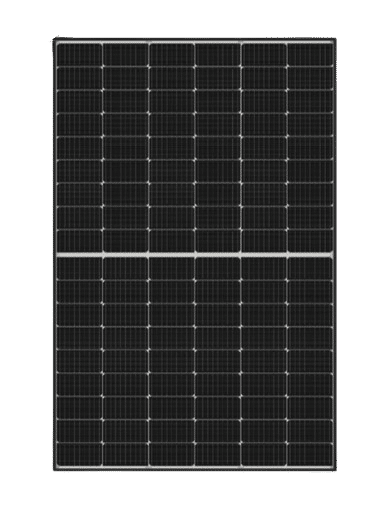

PV module Longi LR5-54HPH-420M rated 420 Wp. Cells: P-type (108 pcs), monofacial, black frame, module efficiency 21.5% (STC). Product warranty 12 years. Dimensions 1722 × 1134 × 30 mm (H × W × D), weight 20.8 kg.
| Series | Hi-MO LR5-54HPH 405-425M |
|---|---|
| Series power range | 405-425 Wp |
| Warranty | 12 years |
| Voltage at max. power Vmpp (STC) | 31.73 V |
| Current at max. power Impp (STC) | 13.24 A |
| Open-circuit voltage Voc (STC) | 37.75 V |
| Short-circuit current Isc (STC) | 14.01 A |
| Module efficiency (STC) | 21.5 % |
| Temperature coefficient of Pmax | -0.34 %/°C |
| Temperature coefficient of Voc | -0.265 %/°C |
| Temperature coefficient of Isc | 0.05 %/°C |
| Max. system voltage | 1500 V |
| Max. series fuse rating | 25 A |
| Number of cells | 108 |
| Glass type | Single glass |
| Glass thickness | 3.2 mm |
| Frame | Anodised aluminium alloy |
| Bypass diodes | 3 |
| Junction box IP rating | IP68 |
| Cable cross-section | 4 mm² |
| Cable length | 1200mm, length can be costumizes |
| Cell technology | Front contact |
| Module power | 420 Wp |
|---|---|
| Cell type | P-type |
| Frame colour | Black frame |
| Module type | Monofacial |
| Height | 1722 mm |
|---|---|
| Width | 1134 mm |
| Depth | 30 mm |
| Weight | 20.8 kg |
