from 65.19 € 0.159 €/Wp
Quantity-tier prices are visible to registered companies.
No payment now. Transport is quoted after you place the order and needs your approval.

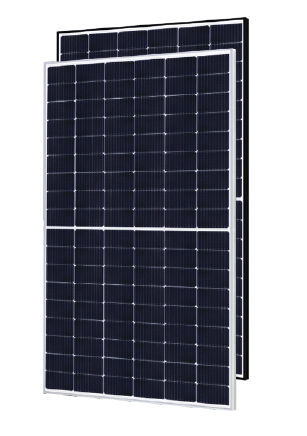

PV module AEG AS-M1083-H(M10)-410/HV BF rated 410 Wp. Cells: Monocrystalline, monofacial, black frame, module efficiency 21% (STC). Product warranty 15 years, power warranty: 84.8% after 25 years. Dimensions 1722 × 1134 × 30 mm (H × W × D), weight 21.3 kg.
| Series | AS-M1083-H(M10)/HV |
|---|---|
| Series power range | 405-415 Wp |
| Warranty | 15 years |
| Power warranty — point 1 (years, % output) | 25, 84.8 |
| Voltage at max. power Vmpp (STC) | 31.43 V |
| Current at max. power Impp (STC) | 13.05 A |
| Open-circuit voltage Voc (STC) | 37.4 V |
| Short-circuit current Isc (STC) | 13.88 A |
| Module efficiency (STC) | 21 % |
| Temperature coefficient of Pmax | -0.34 %/°C |
| Temperature coefficient of Voc | -0.25 %/°C |
| Temperature coefficient of Isc | 0.04 %/°C |
| Max. system voltage | 1500 V |
| Number of cells | 108 |
| Glass type | High transparency |
| Glass thickness | 3.2 mm |
| Frame | Anodised aluminium alloy |
| Connector type | MC4 compatible |
| Cable cross-section | 4 mm² |
| Cable length | 1200 mm |
| Cell technology | Front contact |
| Module power | 410 Wp |
|---|---|
| Cell type | Monocrystalline |
| Frame colour | Black frame |
| Module type | Monofacial |
| Height | 1722 mm |
|---|---|
| Width | 1134 mm |
| Depth | 30 mm |
| Weight | 21.3 kg |
