from 1,710.50 €
Quantity-tier prices are visible to registered companies.
No payment now. Transport is quoted after you place the order and needs your approval.

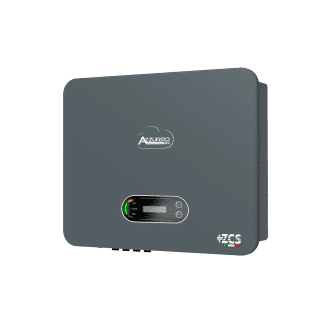

On-grid inverter Azzurro 3PH 25KTL-V3 rated 25 kW, three-phase, 3 MPPT. Max. DC voltage 1100 V, MPP voltage range 180 to 1000 V, maximum efficiency 98.6%, European efficiency 98.2%. IP rating IP66, operating temperature −30 to 60 °C, cooling: fan. Dimensions 480 × 585 × 220 mm (H × W × D), weight 36 kg, warranty 5 years.
| Series | ZCS AZZURRO-THREE-PHASE STRING INVERTER 25-50KTL-V3 |
|---|---|
| Product warranty | 5 years |
| Series AC power range | 28-55 kW |
| Max. DC power | 75 kW |
| Max. DC voltage | 1100 V |
| Nominal DC voltage | 620 V |
| Min. DC start-up voltage | 200 V |
| Max. DC current | 120 A |
| MPP voltage range | 180-1000 V |
| DC inputs | 6 |
| Max. AC power | 28 kW |
| AC output voltage range | 184-480 V |
| Max. AC current | 127.2 A |
| Frequency range | 45-66 Hz |
| Frequency | 50/60 Hz |
| Power factor | 1 |
| Maximum efficiency | 98.6 % |
| European efficiency | 98.2 % |
| Operating temperature range | -30-60 °C |
| IP rating | IP66 |
| Relative humidity | 0-95 % |
| Cooling | Fan |
| Max. altitude | 4000 m |
| Interfaces | RS 485, Ethernet, USB,Bluetooth, WLAN |
| Display | LCD |
| Protection features | Internal Overvoltage Protection DC Insulation Rsistance Detection Grid Monitoring GFCI Monitoring DCI Monitoring AC Short Circuit Current Protection AC Grounding Detection DC Surge Protection AC Surge Protection Anti-islanding Protection AFCI Protection |
| Inverter type | On-grid |
|---|---|
| Number of MPPT | 3 |
| Inverter power | 25 kW |
| Number of phases | 3 |
| Height | 480 mm |
|---|---|
| Width | 585 mm |
| Depth | 220 mm |
| Weight | 36 kg |
