from 1,047.20 €
Quantity-tier prices are visible to registered companies.
No payment now. Transport is quoted after you place the order and needs your approval.

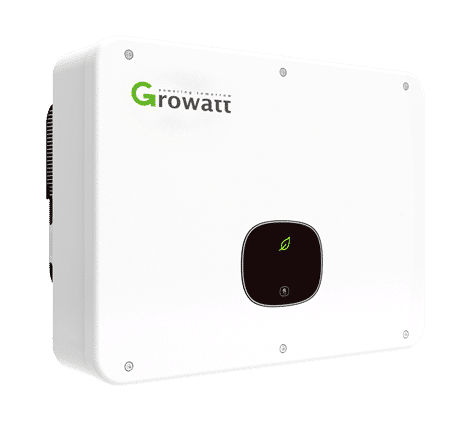

Hybrid inverter Growatt MID 11KTL3-XH rated 11 kW, three-phase, 2 MPPT. Max. DC voltage 1100 V, maximum efficiency 98.75%, European efficiency 98.5%. IP rating IP66, operating temperature −25 to 60 °C. Dimensions 435 × 580 × 230 mm (H × W × D), weight 31 kg, warranty 5 years.
| Series | MID 11-30KTL3-XH |
|---|---|
| Product warranty | 5 years |
| Series AC power range | 12.1-30 kW |
| Max. DC power | 22 kW |
| Max. DC voltage | 1100 V |
| Max. DC current | 64 A |
| Strings per MPPT | 2 |
| DC inputs | 4 |
| Connectors | MC4 |
| Max. AC power | 12.1 kW |
| AC output voltage range | 340-440 V |
| Nominal AC voltage | 220/380; 230/400 V |
| Max. AC current | 18.3 A |
| Frequency range | 45-55 / 55-65 H Hz |
| Frequency | 50/60 Hz |
| Power factor | 0.8 leading to 0.8 lagging |
| Maximum efficiency | 98.75 % |
| European efficiency | 98.5 % |
| Operating temperature range | -25 ~ +60 °C |
| IP rating | IP66 |
| Display | LED |
| Protection features | Anti Island Protection(ENS), Short Circuit Protection, Residual Current Device (RCD), Reverse Polarity Protection, Surge Protection, Ground Fault Monitoring, Grid Monitoring |
| Inverter type | Hybrid |
|---|---|
| Number of MPPT | 2 |
| Inverter power | 11 kW |
| Number of phases | 3 |
| Height | 435 mm |
|---|---|
| Width | 580 mm |
| Depth | 230 mm |
| Weight | 31 kg |
