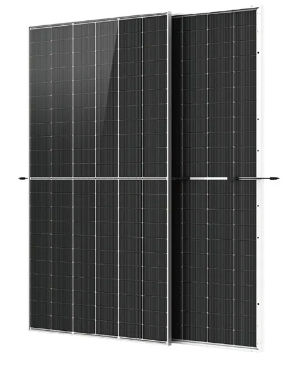

PV module Trina TSM-NEG19RC.20 rated 595 Wp. Cells: N-type (132 pcs), bifacial, silver frame, module efficiency 22% (STC). Product warranty 12 years, power warranty: 87.4% after 30 years. Dimensions 2382 × 1134 × 30 mm (H × W × D), weight 33 kg.
| Series | TSM-NEG19RC.20 595-625W |
|---|---|
| Series power range | 595-625 Wp |
| Warranty | 12 years |
| Power warranty — point 1 (years, % output) | 30, 87.4 |
| Voltage at max. power Vmpp (STC) | 40 V |
| Current at max. power Impp (STC) | 14.89 A |
| Open-circuit voltage Voc (STC) | 48.1 V |
| Short-circuit current Isc (STC) | 15.76 A |
| Module efficiency (STC) | 22 % |
| Temperature coefficient of Pmax | -0.29 %/°C |
| Temperature coefficient of Voc | -0.24 %/°C |
| Temperature coefficient of Isc | 0.04 %/°C |
| Max. system voltage | 1500 V |
| Max. series fuse rating | 35 A |
| Number of cells | 132 |
| Glass type | Heat-strengthened glass with anti-reflective coating |
| Glass thickness | 2+2 mm |
| Frame | Anodised aluminium alloy |
| Junction box IP rating | IP68 |
| Connector type | MC4 EVO2 |
| Cable cross-section | 4 mm² |
| Cable length | 350/280 mm |
| Cell technology | Front contact |
| Module power | 595 Wp |
|---|---|
| Cell type | N-type |
| Frame colour | Silver frame |
| Module type | Bifacial |
| Height | 2382 mm |
|---|---|
| Width | 1134 mm |
| Depth | 30 mm |
| Weight | 33 kg |
