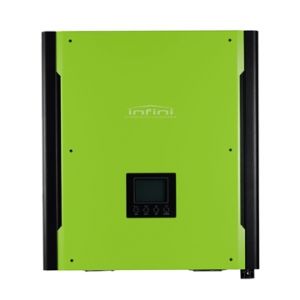

Voltronic 10 kW InfiniSolar 3P

Power: 10 kW
Phases: 3‑phase
Availability: On order
Minimum order: 1 pcs

Downloads

PDF Datasheet — voltronic-infinisolar-3p-10kw 0.5 MB

Price on request

We will check availability and get back to you with this information.

Nothing to pay now.

Description

On-grid inverter Voltronic InfiniSolar 3P 10KW, three-phase, 2 MPPT. Max. DC voltage 720 V, MPP voltage range 400 to 800 V, maximum efficiency 96%, European efficiency 95%. Operating temperature −10 to 55 °C. Dimensions 622 × 500 × 167.5 mm (H × W × D), weight 45 kg, warranty 2 years.

Manufacturer information

• Self-consumption and feed-in to the grid • Programmable supply priority for PV, Battery or Grid • User-adjustable battery charging current suits different types of batteries • Programmable multiple operations modes: Grid tie, Off grid, and grid-tie with backup Built-in Timer for various mode of on/off operation • Multiple communication for USB, RS-232, Modbus and SNMP • Monitoring software for real time status display and control • Custom-made firmware by ODM contract . Parallel operation up to 6 units for 5KW/10KW and 15KW

Technical data

Product details

Series	InfiniSolar 2-15KW
Product warranty	2 years
Series AC power range	2-15 kW
Max. DC power	14.85 kW
Max. DC voltage	720 V
Max. DC current	37.2 A
MPP voltage range	400-800 V
DC inputs	2
Max. AC power	10 kW
AC output voltage range	184-265 V
Nominal AC voltage	230/400 V
Nominal AC current	14.5 A
Power factor	>0.99
Maximum efficiency	96 %
European efficiency	95 %
Operating temperature range	-10-55 °C
Max. altitude	1000 m
Interfaces	RS 232, USB
Display	LCD
