from 828.30 €
Quantity-tier prices are visible to registered companies.
No payment now. Transport is quoted after you place the order and needs your approval.

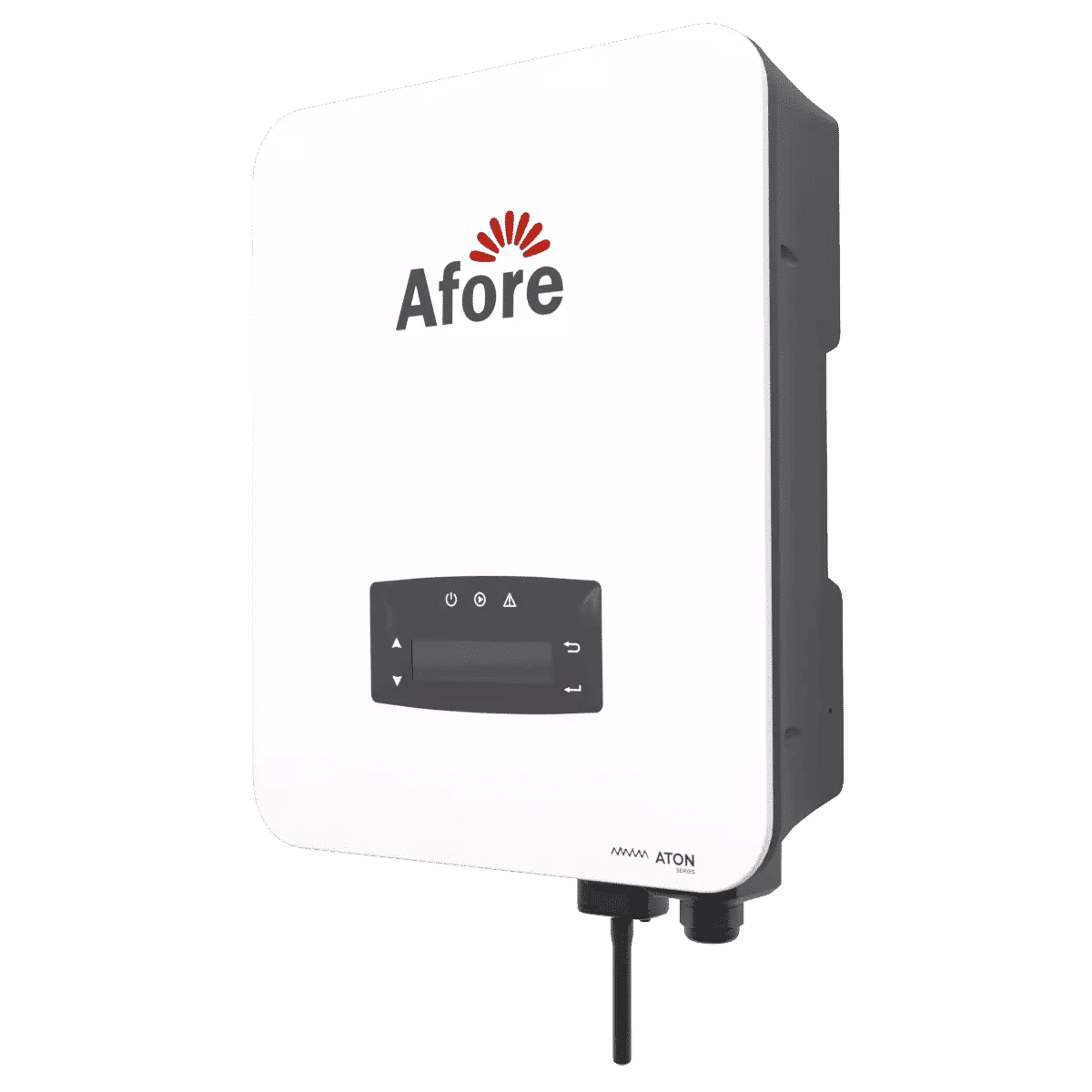

Hybrid inverter Afore AF6K-SL rated 6 kW, single-phase, 2 MPPT. Max. DC voltage 580 V, maximum efficiency 97.9%, European efficiency 97.5%. IP rating IP65, operating temperature −25 to 60 °C. Dimensions 572.5 × 450 × 176 mm (H × W × D), weight 22 kg, warranty 5 years.
| Series | AF3-6K-SL |
|---|---|
| Product warranty | 5 years |
| Series AC power range | 6.6-10 kW |
| Max. DC power | 10 kW |
| Max. DC voltage | 580 V |
| Max. DC current | 20 x 2 A |
| Nominal AC voltage | 230 V |
| Max. AC current | 30 A |
| Nominal AC current | 26 A |
| Frequency range | 50/60 Hz |
| Frequency | 50/60 Hz |
| Power factor | 0.9 |
| Maximum efficiency | 97.9 % |
| European efficiency | 97.5 % |
| Operating temperature range | -25 ~ 60 °C |
| IP rating | IP65/NEMA4X |
| Display | LCD |
| Protection features | PV Reverse Polarity Protection, Voltage Protection, Anti-Islanding Protection, AC Short Circuit Protection |
| Inverter type | Hybrid |
|---|---|
| Number of MPPT | 2 |
| Inverter power | 6 kW |
| Number of phases | 1 |
| Height | 572.5 mm |
|---|---|
| Width | 450 mm |
| Depth | 176 mm |
| Weight | 22 kg |
