from 3,300.00 €
Quantity-tier prices are visible to registered companies.
No payment now. Transport is quoted after you place the order and needs your approval.

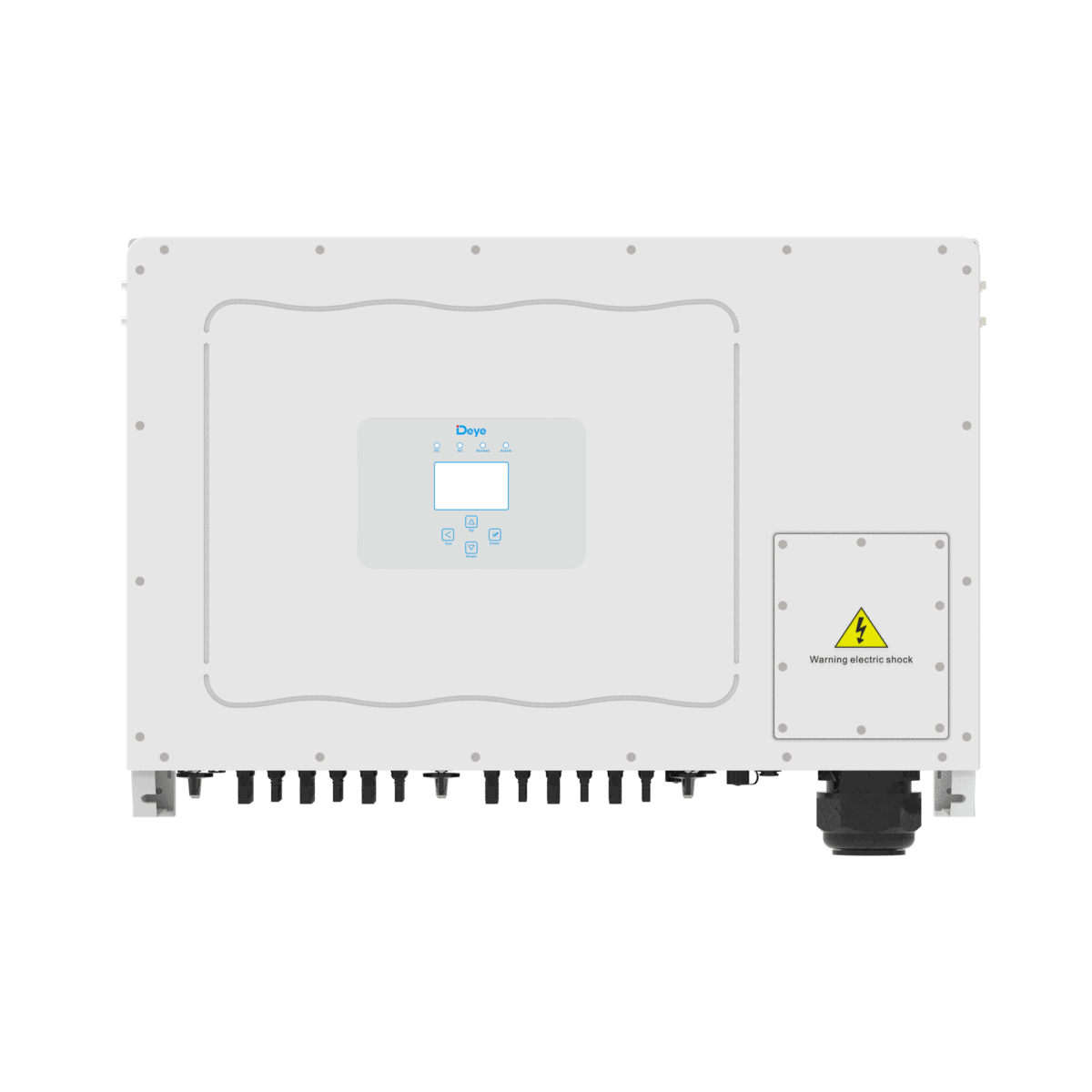

On-grid inverter Deye SUN-110K-G03 rated 110 kW, three-phase, 6 MPPT. Max. DC voltage 1000 V, maximum efficiency 98.8%, European efficiency 98.3%. IP rating IP65. Dimensions 516 × 826 × 312.7 mm (H × W × D), weight 81 kg, warranty 5 years.
| Series | SUN-70/75/80/90/100/110K-G03 |
|---|---|
| Product warranty | 5 years |
| Series AC power range | 70-110 kW |
| Max. DC power | 150 kW |
| Max. DC voltage | 1000 V |
| Max. DC current | 40+40+40+40+40+40 A |
| Strings per MPPT | 4 |
| Connectors | MC4 |
| Max. AC power | 110 kW |
| Nominal AC voltage | 220/380; 230/400 V |
| Max. AC current | 166.7/159.5 A |
| Nominal AC current | 166.7/159.5 A |
| Frequency range | 45-55 or 55-65 Hz |
| Frequency | 50 / 60 Hz |
| Power factor | 0.8 leading to 0.8 lagging |
| Maximum efficiency | 98.8 % |
| European efficiency | 98.3 % |
| Operating temperature range | -25-65, >45 Derating °C |
| IP rating | IP65 |
| Display | LCD 240 × 160 |
| Protection features | DC Reverse-Polarity Protection, AC Short Circuit Protection, AC Output Overcurrent Protection, Output Overvoltage Protection, Insulation Resistance Protection, Ground Fault Monitoring, Anti-islanding Protection, Temperature Protection, Integrated DC Switch, Remote Software Upload, Remote Change of Operating Parameters, Surge Protection DC Type II / AC Type II |
| Inverter type | On-grid |
|---|---|
| Number of MPPT | 6 |
| Inverter power | 110 kW |
| Number of phases | 3 |
| Height | 516 mm |
|---|---|
| Width | 826 mm |
| Depth | 312.7 mm |
| Weight | 81 kg |
