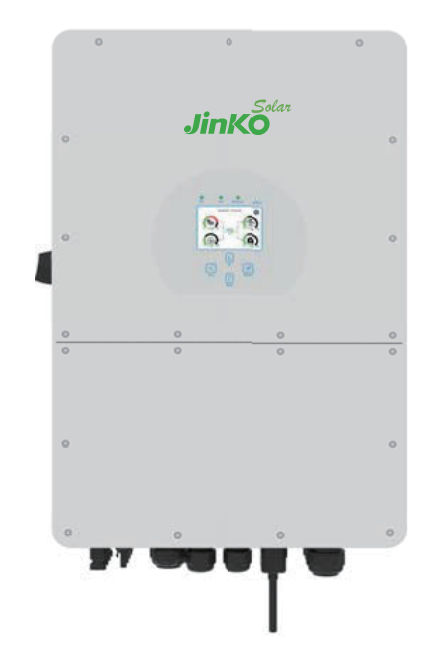

Jinko 12 kW JKS-12H-EI

Power: 12 kW
Phases: 3‑phase
Availability: On order
Minimum order: 1 pcs

Downloads

PDF Datasheet — jks-620h-ei 0.1 MB

Price on request

We will check availability and get back to you with this information.

Nothing to pay now.

Description

Hybrid inverter Jinko JKS-12H-EI rated 12 kW, three-phase, 2 MPPT. Max. DC voltage 1000 V, maximum efficiency 97.6%, European efficiency 97%. IP rating IP65, operating temperature −40 to 60 °C. Dimensions 638 × 408 × 237 mm (H × W × D), weight 30.5 kg, warranty 5 years.

Manufacturer information

WIDE POWER RANGE To carter a wide range of energy demmands, the power range spans from 6kW to 20k 100% BALANCE OUTPUT Up to 100% unbalanced output on each phase. with a maximum output of 50% of the inverter's rated power HIGH FLEXIBILITY Endowed with five different ports for a versatile usage: integrated PV module, Battery, Diesel Generator. Grid and Load port. HIGH PROTECTION IP65 (dust proof and water proof) INTELLIGENT CONTROL Configurable in multiple modes, accessible via web and mobile app for remote real-time monitoring

Technical data

Product details

Series	Three Phase High Voltage Inverter Series JKS-6~20H-EI
Product warranty	5 years
Series AC power range	6-20 kW
Max. DC power	15.6 kW
Max. DC voltage	1000 V
Strings per MPPT	2+1
Max. AC power	13.2 kW
Nominal AC voltage	220/380; 230/400 V
Max. AC current	20/19.2 A
Nominal AC current	18.2/17.4 A
Frequency	50/60 Hz
Power factor	0.8 leading to 0.8 lagging
Maximum efficiency	97.6 %
European efficiency	97 %
Operating temperature range	-40 ~ 60 °C
IP rating	IP65
Protection features	PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Surge protection" DC Type II/AC Type III
