from 264.00 €
Quantity-tier prices are visible to registered companies.
No payment now. Transport is quoted after you place the order and needs your approval.

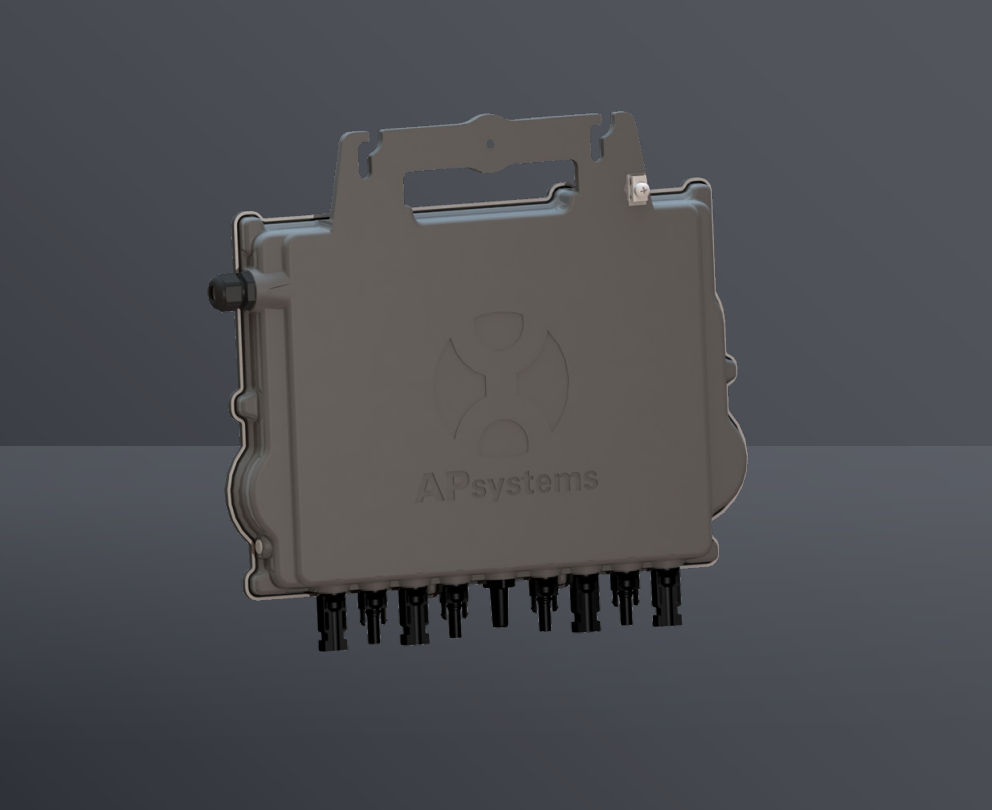

Microinverter APsystems QT2 rated 2 kW, three-phase, 2 MPPT. Max. DC voltage 60 V, maximum efficiency 97%. IP rating IP67, operating temperature −40 to 65 °C, cooling: natural convection. Dimensions 242 × 359 × 46 mm (H × W × D), weight 6 kg, warranty 10 years.
| Series | QT2 |
|---|---|
| Product warranty | 10 years |
| Max. DC voltage | 60 V |
| Max. DC current | 80 A |
| DC inputs | 4 |
| AC output voltage range | 319-438 V |
| Nominal AC voltage | 400 V |
| Nominal AC current | 8.7 A |
| Frequency range | 45-55 Hz |
| Frequency | 50 Hz |
| Power factor | 0.99 |
| Maximum efficiency | 97 % |
| Operating temperature range | -40 ~ 65 °C |
| IP rating | IP67 |
| Cooling | Natural convection |
| Protection features | Internal Overvoltage Protection DC Insulation Rsistance Detection Grid Monitoring GFCI Monitoring DCI Monitoring AC Short Circuit Current Protection AC Grounding Detection DC Surge Protection AC Surge Protection Anti-islanding Protection AFCI Protection |
| Inverter type | Microinverter |
|---|---|
| Number of MPPT | 2 |
| Inverter power | 2 kW |
| Number of phases | 3 |
| Height | 242 mm |
|---|---|
| Width | 359 mm |
| Depth | 46 mm |
| Weight | 6 kg |
