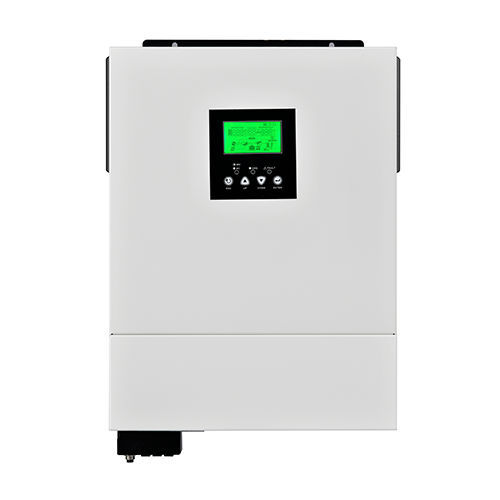

Voltronic 1.5 kW Axpert VM II Premium+ 1.5K

Power: 1.5 kW
Phases: 1‑phase
Availability: On order
Minimum order: 1 pcs

Downloads

PDF Datasheet — axpert20vm20ii20premium20hybrid20inverter 0.4 MB

Price on request

We will check availability and get back to you with this information.

Nothing to pay now.

Description

Hybrid inverter Voltronic Axpert VM II Premium+ 1.5K rated 1.5 kW, single-phase, 1 MPPT. Max. DC voltage 230 V, maximum efficiency 93%. Dimensions 357 × 288 × 90 mm (H × W × D), weight 6.6 kg.

Manufacturer information

• Wide PV input range, starts from 30VDC for 1.5K/3K/4.2K models • Built-in communication port for BMS • Built-in feed-in grid function • Built-in WiFi with APP for remote monitoring and OTA firmware upgrade • Dual AC outputs only for 4.2K/6.2K/8K models • Maximum charging current 100A/120A based on models • Battery independent design • Battery equalization function to optimize battery performance and extend lifecycle • Built-in anti-dust kit

Technical data

Product details

Series	Axpert VM II Premium+ Hybrid Inverter
Series AC power range	1.5-8 kW
Max. DC voltage	230 V
Max. DC current	13 A
Strings per MPPT	1
Max. AC power	1.5 kW
Nominal AC voltage	230 V
Frequency	50/60 Hz
Maximum efficiency	93 %
Operating temperature range	-10+50 °C
