from 78.30 € 0.121 €/Wp
Quantity-tier prices are visible to registered companies.
No payment now. Transport is quoted after you place the order and needs your approval.

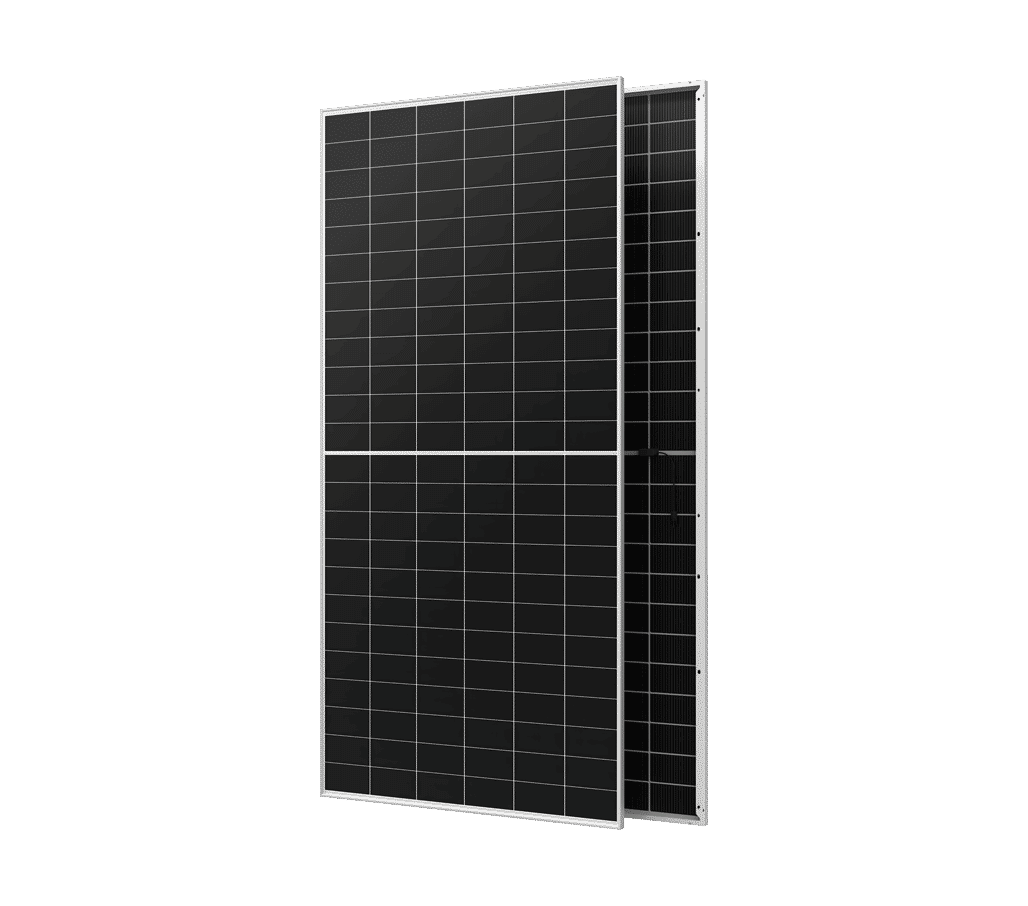

PV module Aiko AIKO-G645-MCH72Dw SF rated 645 Wp. Cells: N-type (144 pcs), bifacial, silver frame, module efficiency 23.9% (STC). Dimensions 2382 × 1134 × 30 mm (H × W × D), weight 33.5 kg.
| Series | STELLAR 1N+ Series AIKO-G635-660-MCH72Dw |
|---|---|
| Series power range | 635-660 Wp |
| Voltage at max. power Vmpp (STC) | 45.2 V |
| Current at max. power Impp (STC) | 14.27 A |
| Open-circuit voltage Voc (STC) | 53.9 V |
| Short-circuit current Isc (STC) | 15 A |
| Module efficiency (STC) | 23.9 % |
| Power tolerance + (STC) | 3 % |
| Temperature coefficient of Pmax | -0.26 %/°C |
| Temperature coefficient of Voc | -0.22 %/°C |
| Temperature coefficient of Isc | 0.05 %/°C |
| Max. system voltage | 1500 V |
| Max. series fuse rating | 30 A |
| Number of cells | 144 |
| Glass type | Heat-strengthened glass |
| Glass thickness | 2+2 mm |
| Frame | Anodised aluminium alloy |
| Connector type | MC4 |
| Cable cross-section | 4 mm² |
| Cable length | 350 mm |
| Cell technology | Back contact |
| Module power | 645 Wp |
|---|---|
| Cell type | N-type |
| Frame colour | Silver frame |
| Module type | Bifacial |
| Height | 2382 mm |
|---|---|
| Width | 1134 mm |
| Depth | 30 mm |
| Weight | 33.5 kg |
