from 139.15 €
Quantity-tier prices are visible to registered companies.
No payment now. Transport is quoted after you place the order and needs your approval.

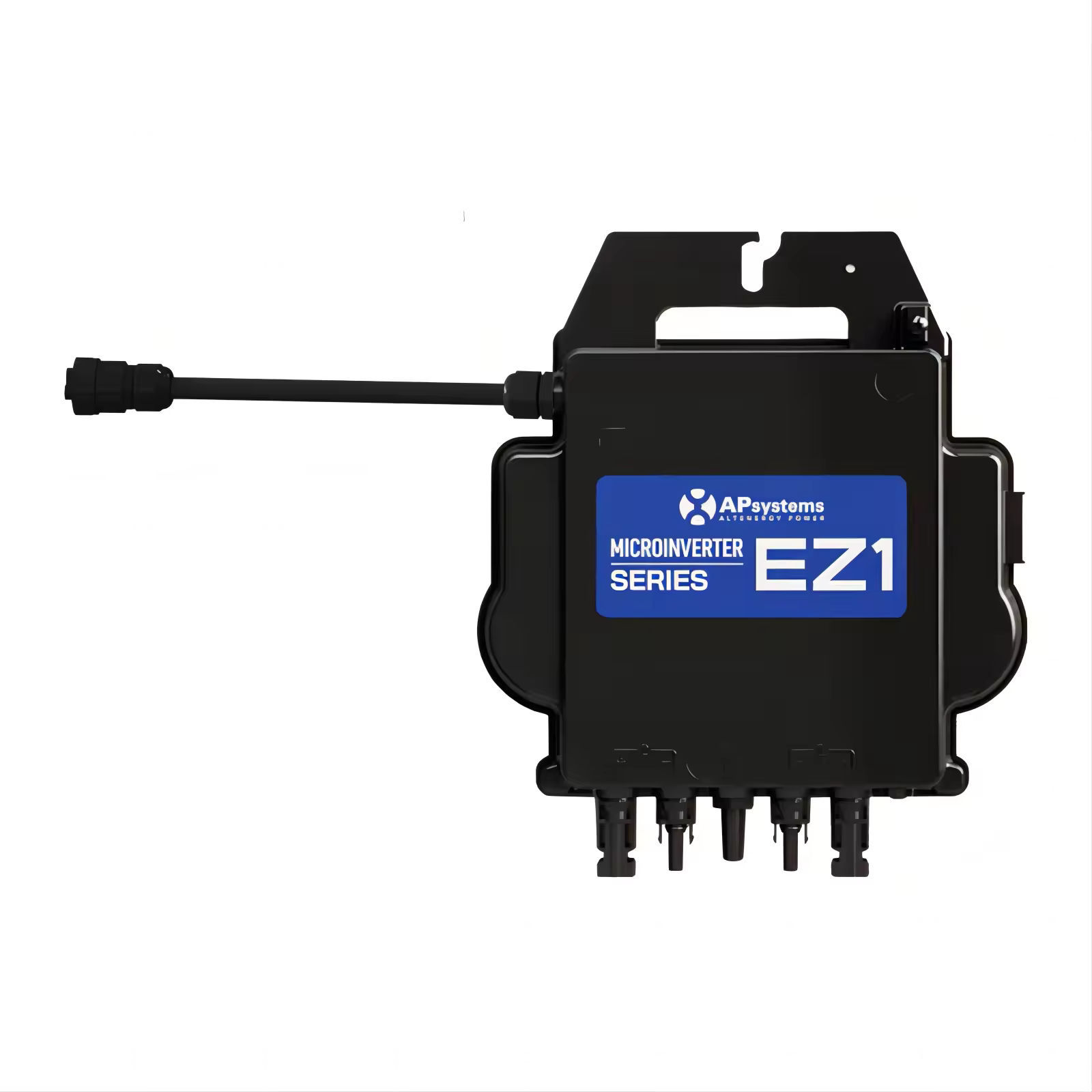

Microinverter APsystems EZ1-H rated 0.96 kW, single-phase, 2 MPPT. Max. DC voltage 60 V, maximum efficiency 96.7%. IP rating IP67, operating temperature −40 to 65 °C. Dimensions 218 × 263 × 37 mm (H × W × D), weight 3 kg, warranty 12 years.
| Series | EZ1 |
|---|---|
| Product warranty | 12 years |
| Series AC power range | 0.799-0.96 kW |
| Max. DC power | 0.76 kW |
| Max. DC voltage | 60 V |
| Max. DC current | 20x2 A |
| DC inputs | 2 |
| Max. AC power | 0.96 kW |
| AC output voltage range | 184-253 V |
| Nominal AC voltage | 230 V |
| Max. AC current | 4.2 A |
| Frequency range | 48-51 Hz |
| Frequency | 50 Hz |
| Power factor | 0.99 |
| Maximum efficiency | 96.7 % |
| Operating temperature range | -40-65 °C |
| IP rating | IP67 |
| Protection features | Internal Overvoltage Protection DC Insulation Rsistance Detection Grid Monitoring GFCI Monitoring DCI Monitoring AC Short Circuit Current Protection AC Grounding Detection DC Surge Protection AC Surge Protection Anti-islanding Protection AFCI Protection |
| Inverter type | Microinverter |
|---|---|
| Number of MPPT | 2 |
| Inverter power | 0.96 kW |
| Number of phases | 1 |
| Height | 218 mm |
|---|---|
| Width | 263 mm |
| Depth | 37 mm |
| Weight | 3 kg |
