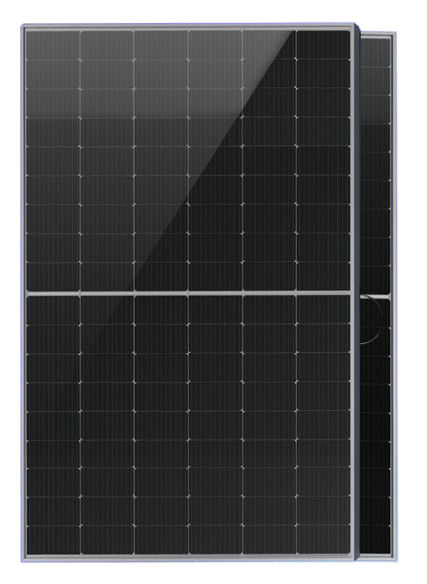

PV module HY Solar HY-NT10/54GDF rated 460 Wp. Cells: N-type (108 pcs), bifacial, black frame, module efficiency 23% (STC). Product warranty 30 years, power warranty: 87.4% after 30 years. Dimensions 1762 × 1134 × 30 mm (H × W × D), weight 24.5 kg.
| Series | HY-NT10/54GDF 445-465 |
|---|---|
| Series power range | 445-465 Wp |
| Warranty | 30 years |
| Power warranty — point 2 (years, % output) | 30, 87.4 |
| Voltage at max. power Vmpp (STC) | 33.17 V |
| Current at max. power Impp (STC) | 13.87 A |
| Open-circuit voltage Voc (STC) | 39.7 V |
| Short-circuit current Isc (STC) | 14.64 A |
| Module efficiency (STC) | 23 % |
| Temperature coefficient of Pmax | -0.29 %/°C |
| Temperature coefficient of Voc | -0.24 %/°C |
| Temperature coefficient of Isc | 0.043 %/°C |
| Max. system voltage | 1500 V |
| Max. series fuse rating | 30 A |
| Number of cells | 108 |
| Glass thickness | 2+2 mm |
| Frame | Aluminum |
| Connector type | MC4 EVO2 |
| Cable cross-section | 4 mm² |
| Cable length | 300 mm |
| Cell technology | Front contact |
| Module power | 460 Wp |
|---|---|
| Cell type | N-type |
| Frame colour | Black frame |
| Module type | Bifacial |
| Height | 1762 mm |
|---|---|
| Width | 1134 mm |
| Depth | 30 mm |
| Weight | 24.5 kg |
