from 9,529.73 €
Quantity-tier prices are visible to registered companies.
No payment now. Transport is quoted after you place the order and needs your approval.

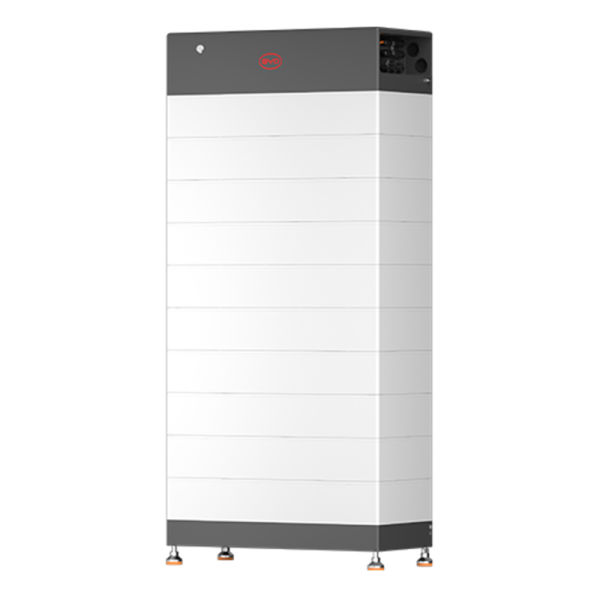

Battery set BYD HVB 29.6 with 29.69 kWh capacity (10 modules), LiFePO4 (LFP), high voltage (HV), voltage 512 V. Operating voltage 400–576 V, communication CAN / RS485, IP rating IP55. Application: commercial and industrial (C&I). Dimensions 1327 × 610 × 282 mm (H × W × D), weight 287.1 kg, warranty 15 years.
| Series | BATTERY-BOX HVB |
|---|---|
| Warranty | 15 years |
| Number of battery modules | 10 |
| Min. voltage | 400 V |
| Max. voltage | 576 V |
| IP rating | IP55 |
| Communication protocol | CAN / RS485 |
| System type (HV / LV) | High voltage (HV) |
| Capacity | 29.69 kWh |
|---|---|
| Battery voltage | 512 V |
| Cell technology | LiFePO4 (LFP) |
| Application | Commercial and industrial (C&I) |
| Height | 1327 mm |
|---|---|
| Width | 610 mm |
| Length | 282 mm |
| Weight | 287.1 kg |
