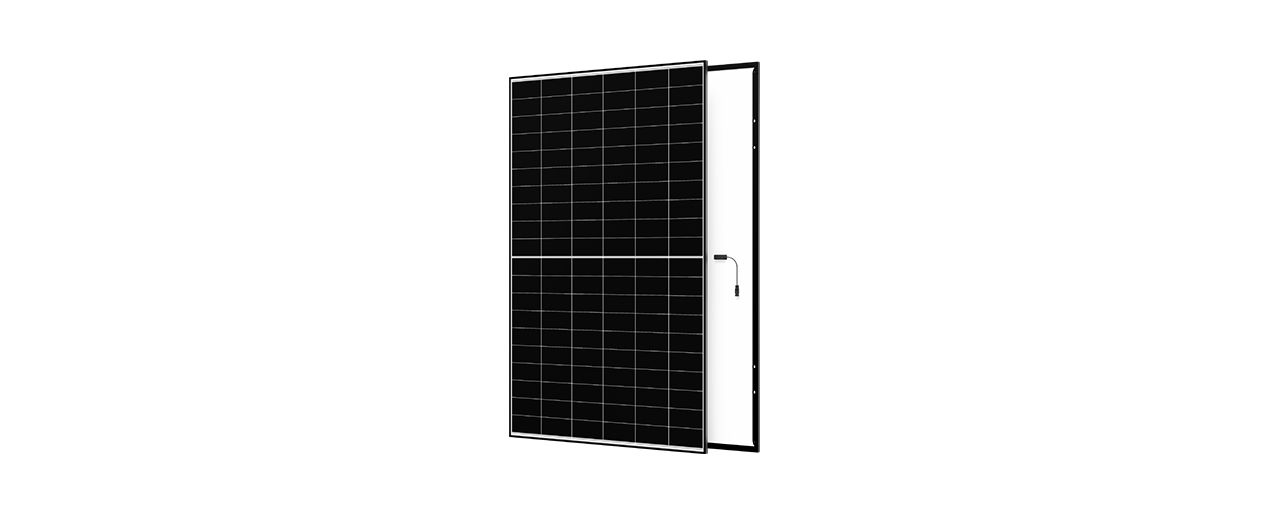

PV module Aiko AIKO-A515-MAH60Mw rated 515 Wp. Cells: N-type (120 pcs), monofacial, black frame, module efficiency 23.2% (STC). Product warranty 25 years, power warranty: 90.6% after 25 years and 88.85% after 30 years. Dimensions 1954 × 1134 × 30 mm (H × W × D), weight 23.1 kg.
| Series | Neostar 2P60 AIKO-A500-525-MAH60Mw |
|---|---|
| Series power range | 500-525 Wp |
| Warranty | 25 years |
| Power warranty — point 1 (years, % output) | 25, 90.6 |
| Power warranty — point 2 (years, % output) | 30, 88.85 |
| Voltage at max. power Vmpp (STC) | 38.2 V |
| Current at max. power Impp (STC) | 13.49 A |
| Open-circuit voltage Voc (STC) | 45.32 V |
| Short-circuit current Isc (STC) | 14.23 A |
| Module efficiency (STC) | 23.2 % |
| Power tolerance + (STC) | 3 % |
| Temperature coefficient of Pmax | -0.26 %/°C |
| Temperature coefficient of Voc | -0.22 %/°C |
| Temperature coefficient of Isc | 0.05 %/°C |
| Max. system voltage | 1500 V |
| Max. series fuse rating | 25 A |
| Number of cells | 120 |
| Glass type | Tempered glass |
| Glass thickness | 3.2 mm |
| Frame | Anodised aluminium alloy |
| Bypass diodes | 3 |
| Junction box IP rating | IP68 |
| Connector type | Staubli EVO2 |
| Cable cross-section | 4 mm² |
| Cable length | 1200 mm |
| Cell technology | Back contact |
| Module power | 515 Wp |
|---|---|
| Cell type | N-type |
| Frame colour | Black frame |
| Module type | Monofacial |
| Height | 1954 mm |
|---|---|
| Width | 1134 mm |
| Depth | 30 mm |
| Weight | 23.1 kg |
