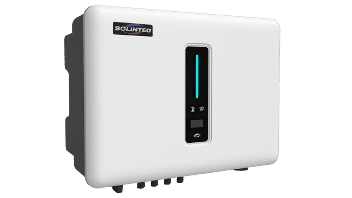

On-grid inverter Solinteg OGT-15K-P rated 15 kW, three-phase, 3 MPPT. Max. DC voltage 1100 V, maximum efficiency 98.6%, European efficiency 98.2%. IP rating IP66, operating temperature −30 to 60 °C. Dimensions 335 × 465 × 200 mm (H × W × D), weight 24 kg, warranty 5 years.
| Series | INTEG O 5-25KW On-Grid Inverter |
|---|---|
| Product warranty | 5 years |
| Series AC power range | 5-25 kW |
| Max. DC voltage | 1100 V |
| Max. DC current | 15/15/15 A |
| Strings per MPPT | 1/1/2 |
| DC inputs | 4 |
| Max. AC power | 15 kW |
| Nominal AC voltage | 220/380; 230/400; 240/415 V |
| Max. AC current | 22.7 A |
| Nominal AC current | 22.7/21.7/20.8 A |
| Frequency | 50/60 Hz |
| Power factor | 0.8 leading to 0.8 lagging |
| Maximum efficiency | 98.6 % |
| European efficiency | 98.2 % |
| Operating temperature range | -30 ~ 60 °C |
| IP rating | IP66 |
| Display | OLED & LED |
| Protection features | Internal Overvoltage Protection DC Insulation Rsistance Detection Grid Monitoring GFCI Monitoring DCI Monitoring AC Short Circuit Current Protection AC Grounding Detection DC Surge Protection AC Surge Protection Anti-islanding Protection AFCI Protection |
| Inverter type | On-grid |
|---|---|
| Number of MPPT | 3 |
| Inverter power | 15 kW |
| Number of phases | 3 |
| Height | 335 mm |
|---|---|
| Width | 465 mm |
| Depth | 200 mm |
| Weight | 24 kg |
