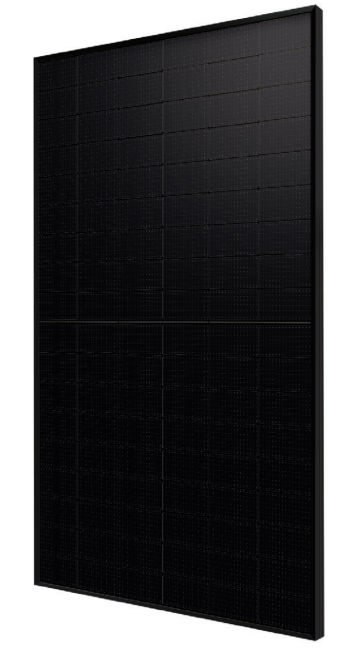

PV module RECOM RCM-500-RNG rated 500 Wp. Cells: N-type (108 pcs), monofacial, Full black, module efficiency 22.5% (STC). Product warranty 30 years, power warranty: 92.7% after 15 years and 85.95% after 30 years. Dimensions 1961 × 1134 × 30 mm (H × W × D), weight 23.9 kg.
| Series | RCM-485-505-RNG |
|---|---|
| Series power range | 485-505 Wp |
| Warranty | 30 years |
| Power warranty — point 1 (years, % output) | 15, 92.7 |
| Power warranty — point 2 (years, % output) | 30, 85.95 |
| Voltage at max. power Vmpp (STC) | 33.05 V |
| Current at max. power Impp (STC) | 15.13 A |
| Open-circuit voltage Voc (STC) | 39.77 V |
| Short-circuit current Isc (STC) | 15.91 A |
| Module efficiency (STC) | 22.5 % |
| Power tolerance + (STC) | 3 % |
| Temperature coefficient of Pmax | -0.3 %/°C |
| Temperature coefficient of Voc | -0.25 %/°C |
| Temperature coefficient of Isc | 0.04 %/°C |
| Max. system voltage | 1500 V |
| Max. series fuse rating | 30 A |
| Number of cells | 108 |
| Glass type | Tempered and low iron glass+ARC |
| Glass thickness | 3.2 mm |
| Frame | Anodised aluminium alloy |
| Bypass diodes | 3 |
| Junction box IP rating | IP68 |
| Connector type | MC4 compatible |
| Cable cross-section | 4 mm² |
| Cable length | 1200 mm |
| Cell technology | Front contact |
| Module power | 500 Wp |
|---|---|
| Cell type | N-type |
| Frame colour | Full black |
| Module type | Monofacial |
| Height | 1961 mm |
|---|---|
| Width | 1134 mm |
| Depth | 30 mm |
| Weight | 23.9 kg |
