from 52.04 € 0.113 €/Wp
Quantity-tier prices are visible to registered companies.
No payment now. Transport is quoted after you place the order and needs your approval.

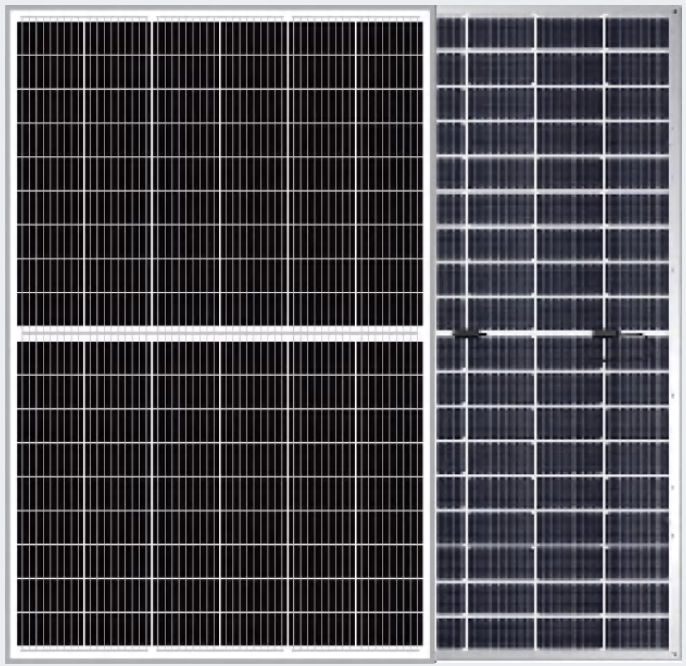

PV module RESUN RS8K460M-DG rated 460 Wp. Cells: N-type (108 pcs), bifacial, silver frame, module efficiency 23.02% (STC). Product warranty 15 years, power warranty: 87.4% after 30 years. Dimensions 1762 × 1134 × 30 mm (H × W × D), weight 24.3 kg.
| Series | RS8K460M-DG |
|---|---|
| Series power range | 460 Wp |
| Warranty | 15 years |
| Power warranty — point 2 (years, % output) | 30, 87.4 |
| Voltage at max. power Vmpp (STC) | 33.13 V |
| Current at max. power Impp (STC) | 13.89 A |
| Open-circuit voltage Voc (STC) | 39.55 V |
| Short-circuit current Isc (STC) | 14.72 A |
| Module efficiency (STC) | 23.02 % |
| Power tolerance + (STC) | 3 % |
| Power tolerance − (STC) | 3 % |
| Max. power Pmax (NOCT) | 351 W |
| Voltage at max. power Vmpp (NOCT) | 31.08 V |
| Current at max. power Impp (NOCT) | 11.29 A |
| Open-circuit voltage Voc (NOCT) | 37.06 V |
| Short-circuit current Isc (NOCT) | 11.89 A |
| NOCT | 45 °C |
| Operating temperature range | -40 ~ +85 °C |
| Temperature coefficient of Pmax | -0.29 %/°C |
| Temperature coefficient of Voc | -0.25 %/°C |
| Temperature coefficient of Isc | 0.045 %/°C |
| Max. system voltage | 1500 V |
| Max. series fuse rating | 25 A |
| Cell size | 182x94 mm |
| Number of cells | 108 |
| Glass type | High-transmission, AR-coated tempered glass |
| Glass thickness | 2.0; 2.0 mm |
| Junction box IP rating | IP68 |
| Connector type | MC4 |
| Cable cross-section | 4 mm² |
| Cable length | 300(+)/300(-) mm |
| Cell technology | Front contact |
| Module power | 460 Wp |
|---|---|
| Cell type | N-type |
| Frame colour | Silver frame |
| Module type | Bifacial |
| Height | 1762 mm |
|---|---|
| Width | 1134 mm |
| Depth | 30 mm |
| Weight | 24.3 kg |
