from 2,424.65 €
Quantity-tier prices are visible to registered companies.
No payment now. Transport is quoted after you place the order and needs your approval.

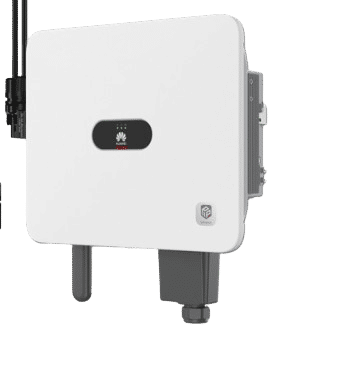

Hybrid inverter Huawei SUN5000-25K-MB0 rated 25 kW, three-phase, 2 MPPT. Max. DC voltage 1100 V, maximum efficiency 98.4%, European efficiency 98.2%. IP rating IP66. Dimensions 546 × 460 × 228 mm (H × W × D), weight 21 kg.
| Series | SUN5000-17-25-MB0 |
|---|---|
| Series AC power range | 17-25 kW |
| Max. DC power | 37.5 kW |
| Max. DC voltage | 1100 V |
| Max. DC current | 30 A |
| Strings per MPPT | 2 |
| Connectors | MC4 |
| Max. AC power | 25 kW |
| Nominal AC voltage | 380/400 V |
| Max. AC current | 24.5 A |
| Nominal AC current | 42 A |
| Frequency | 50/60 Hz |
| Power factor | 0.8 |
| Maximum efficiency | 98.4 % |
| European efficiency | 98.2 % |
| Operating temperature range | -25 ~ + 60 °C |
| IP rating | IP66 |
| Display | LED indicators, Integrated WLAN + FusionSolar APP |
| Inverter type | Hybrid |
|---|---|
| Number of MPPT | 2 |
| Inverter power | 25 kW |
| Number of phases | 3 |
| Height | 546 mm |
|---|---|
| Width | 460 mm |
| Depth | 228 mm |
| Weight | 21 kg |
