from 73.69 € 0.115 €/Wp
Quantity-tier prices are visible to registered companies.
No payment now. Transport is quoted after you place the order and needs your approval.

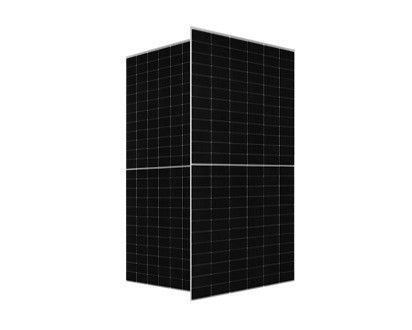

PV module JA Solar JAM72D42-640/LB rated 640 Wp. Cells: N-type (144 pcs), bifacial. Dimensions 2465 × 1134 × 30 mm (H × W × D), weight 34.6 kg.
| Number of cells | 144 |
|---|---|
| Cell technology | Front contact |
| Cell type | N-type |
| Module type | Bifacial |
| Depth | 30 mm |
|---|---|
| Height | 2465 mm |
| Weight | 34.6 kg |
| Width | 1134 mm |
| Module power | 640 Wp |
|---|
| Temperature coefficient of Isc | 0.045 %/°C |
|---|---|
| Temperature coefficient of Voc | -0.250 %/°C |
| Temperature coefficient of Pmax | -0.290 %/°C |
| Max. system voltage | 1500 V |
| Max. series fuse rating | 30 A |
| NOCT | 45±2 °C |
| Cable cross-section | 4 mm² |
| Junction box IP rating | IP68 |
| Bypass diodes | 3 |
