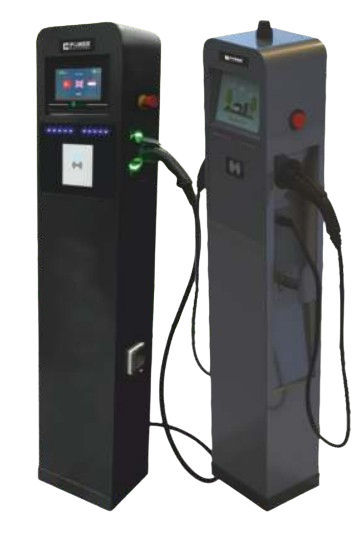

Power Elektronik 22 kW Commercial DUO EV Charger

Power: 22 kW
Phases: 3‑phase
Availability: On order
Minimum order: 1 pcs

Downloads

PDF Datasheet — commercial20duo20ev20charger 1.7 MB

Price on request

We will check availability and get back to you with this information.

Nothing to pay now.

Description

AC charger Power Elektronik Commercial DUO EV Charger rated 22 kW, three-phase, 2 socket. Nominal voltage 400 V, IP rating IP54. Dimensions 1500 × 290 × 230 mm (H × W × D), weight 30 kg.

Manufacturer information

2x22 kW output in one charger It can be controlled via mobile or web application for commercial use It accepts payments made on application thanks to Ethernet, Cellular, and Wi-Fi support Wifi, Bluetooth, GSM ve Ethernet (Optional) OCPP 1,6j Remote Monitoring and Control Emergency Stop 7 inch HMI Display CE Certificate

Technical data

Main parameters

Max. charging power	22 kW
Charger type (AC / DC)	AC
Number of phases	3
Socket type	2

Product details

Series	Commercial DUO EV Charger
Max. DC output current	2x32 A
IP rating	IP54
Nominal voltage	400 V
Operating temperature range	-30 ~ 50 °C
Grid frequency	50/60 Hz
