Price on request
We will check availability and get back to you with this information.
Nothing to pay now.

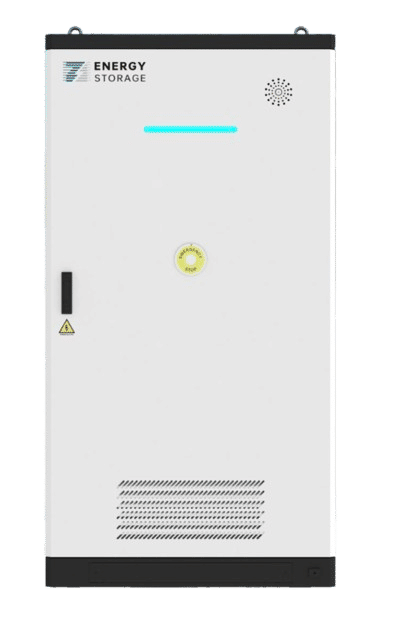

Energy storage system BENY BYHV-230SAC with 230.4 kWh capacity, LiFePO4 (LFP), high voltage (HV), three-phase. Operating voltage 624–876 V, depth of discharge 80%, communication CAN, RS485, TCP/IP, IP rating IP55. Battery voltage 768 V, efficiency 90%. Dimensions 2050 × 1100 × 1800 mm (H × W × D), weight 2400 kg.
| Series | BYHV-230SAC |
|---|---|
| Min. voltage | 624 V |
| Max. voltage | 876 V |
| Depth of discharge (DoD) | 80 % |
| IP rating | IP55 |
| Efficiency | 90 % |
| Communication protocol | CAN, RS485, TCP/IP |
| Min. charge / discharge temperature | -20 °C |
| Max. charge / discharge temperature | -55 °C |
| System type (HV / LV) | High voltage (HV) |
| Capacity | 230.4 kWh |
|---|---|
| Battery voltage | 768 V |
| Cell technology | LiFePO4 (LFP) |
| Number of phases | 3 |
| Height | 2050 mm |
|---|---|
| Width | 1100 mm |
| Length | 1800 mm |
| Weight | 2400 kg |
