from 1,489.16 €
Quantity-tier prices are visible to registered companies.
No payment now. Transport is quoted after you place the order and needs your approval.

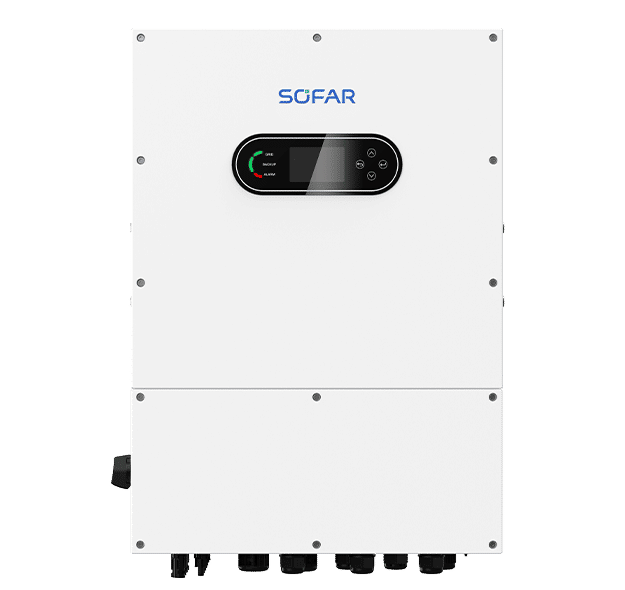

Hybrid inverter Sofar HYD-8K-LT1 rated 8 kW, three-phase, 2 MPPT. Max. DC voltage 1000 V, maximum efficiency 97.6%, European efficiency 97%. Operating temperature 30 to 60 °C. Dimensions 690 × 485 × 290 mm (H × W × D), weight 52 kg.
| Series | HYD-5-20K-LT1 |
|---|---|
| Series AC power range | 5-20 kW |
| Max. DC power | 16 kW |
| Max. DC voltage | 1000 V |
| Max. DC current | 40 A |
| Strings per MPPT | 2 |
| Max. AC power | 8.8 kW |
| Nominal AC voltage | 380/400/415 V |
| Frequency | 50/60 Hz |
| Power factor | 0.8 leading to 0.8 lagging |
| Maximum efficiency | 97.6 % |
| European efficiency | 97 % |
| Operating temperature range | 30 ~ +60 °C |
| Display | LCD&APP |
| Protection features | DC Switch PV Reverse Connection Protection Battery Reverse Connection Protection Output Short Circuit Protection Output Overcurrent Protection Output Overvoltage Protection Insulation Impedance Detection Residual Current Detection Anti-island Protection Surge Protection |
| Inverter type | Hybrid |
|---|---|
| Number of MPPT | 2 |
| Inverter power | 8 kW |
| Number of phases | 3 |
| Height | 690 mm |
|---|---|
| Width | 485 mm |
| Depth | 290 mm |
| Weight | 52 kg |
