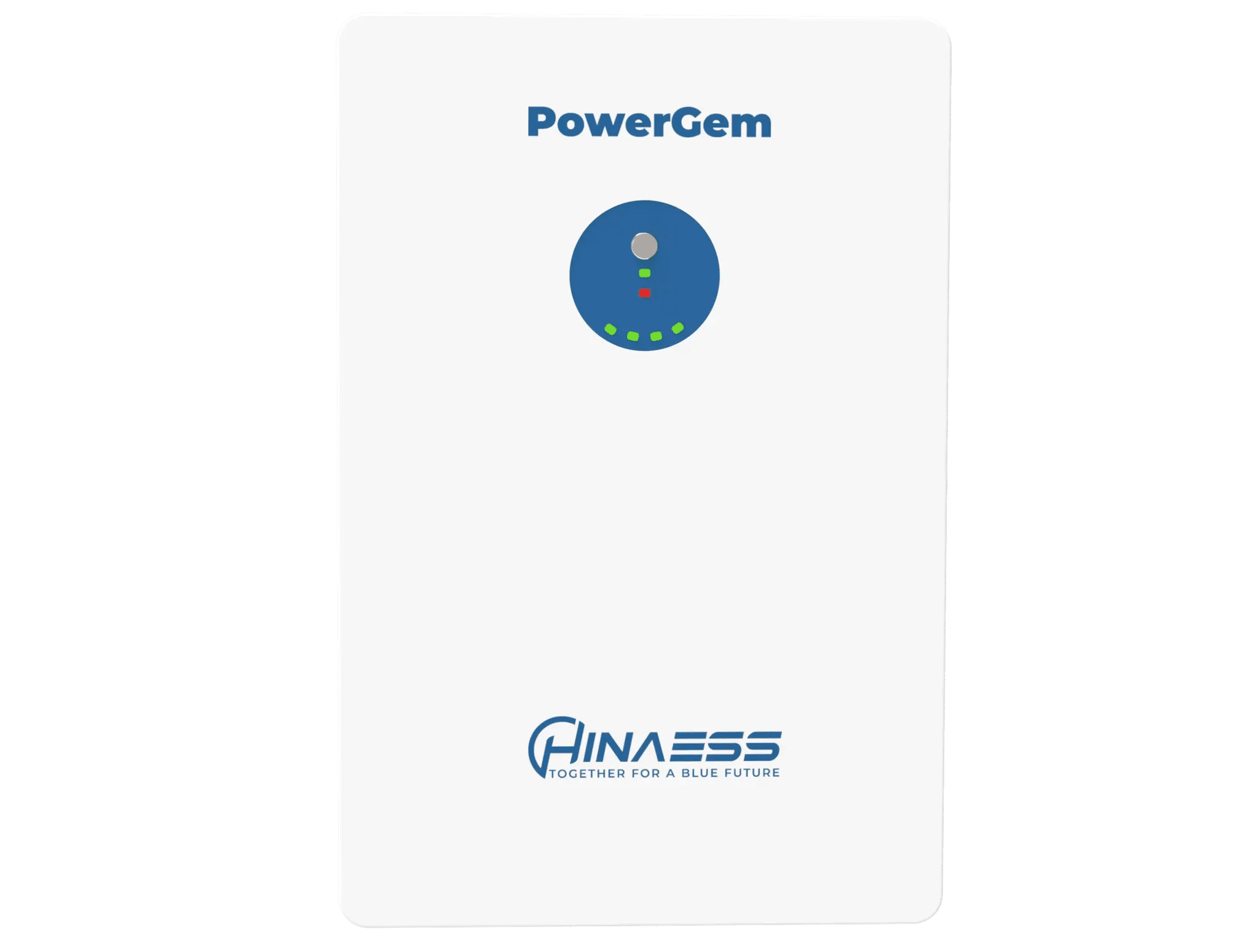

HinaESS 5.12 kWh PowerGem

Capacity: 5.1 kWh
Availability: On order
Minimum order: 1 pcs

Downloads

PDF Datasheet — powergem 0.5 MB

Price on request

We will check availability and get back to you with this information.

Nothing to pay now.

Description

Battery module HinaESS PowerGem with 5.12 kWh capacity, LiFePO4 (LFP), low voltage (LV), voltage 51.2 V. Communication CAN/RS485, IP rating IP20. Application: residential. Dimensions 166 × 428 × 640 mm (H × W × D), weight 58 kg, warranty 10 years.

Manufacturer information

✪ NEAT 10 year warranty Ultra safe LFP material Elegant enclosure design Floor-standing/wall-mounting HANDY Quick installation Remote monitoring Flexible remote upgrade Auto-addressing for master/slaves set up ✡ ROBUST Parallel up to 32 modules Wide range inverter compatibility 1C rate continuous charge/discharge Multi protection to avoid over discharge Smart BMS management for longer lifespan Active balancing charging, low self consumption

Technical data

Product details

Series	PowerGem
Warranty	10 years
System type (HV / LV)	Low voltage (LV)
IP rating	IP20
Communication protocol	CAN/RS485
Compatible inverters	Victron, Luxpower, Deye, Voltronic, SMA Goodwe, Growatt, Sofar, Solark, SRNE, Must
