from 1,008.70 €
Quantity-tier prices are visible to registered companies.
No payment now. Transport is quoted after you place the order and needs your approval.

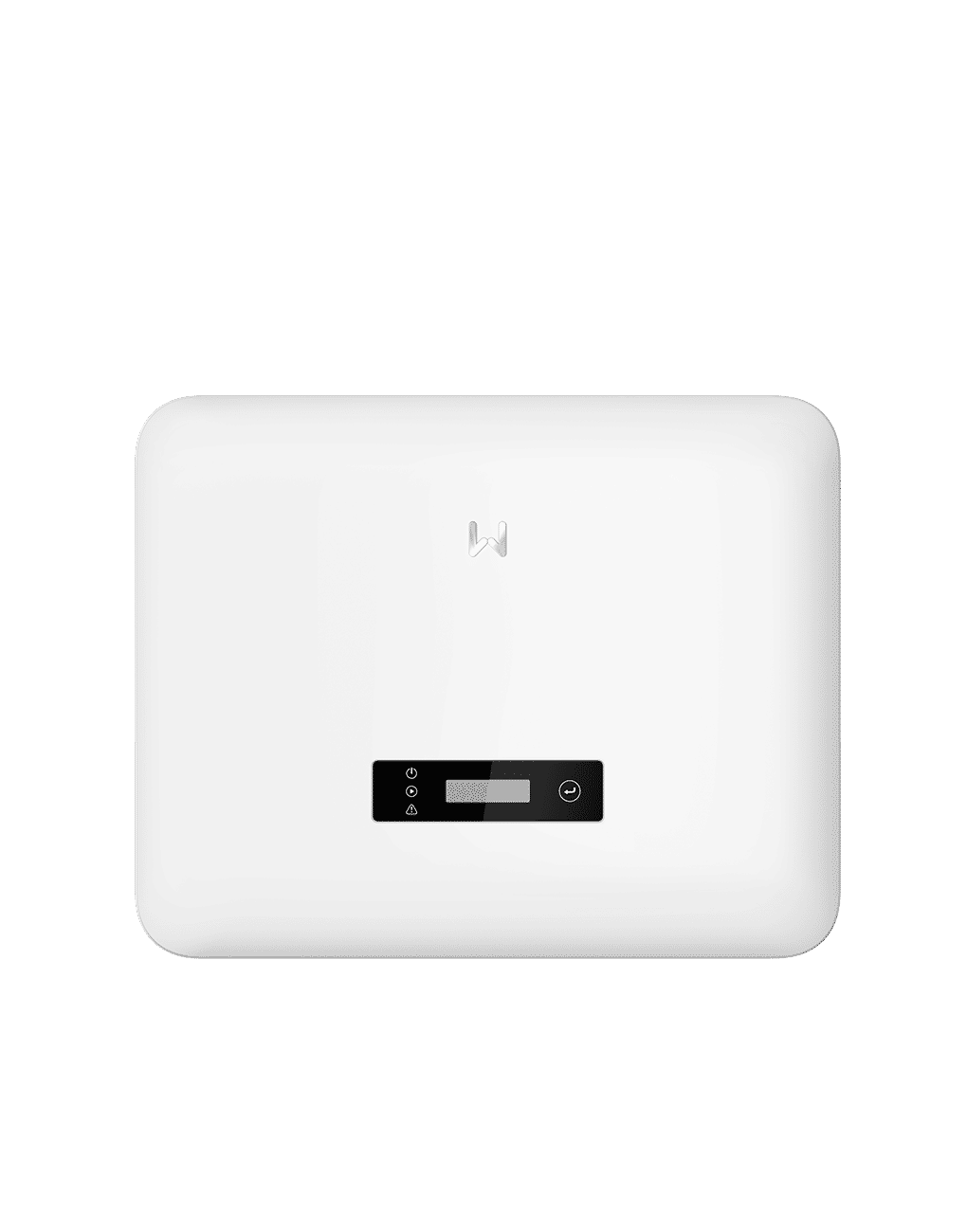

On-grid inverter GoodWe GW40K-SDT-P30 rated 40 kW, three-phase, 4 MPPT. Max. DC voltage 1100 V, maximum efficiency 98.6%, European efficiency 97.7%. IP rating IP66, operating temperature −30 to 60 °C. Dimensions 483 × 585 × 230 mm (H × W × D), weight 31 kg.
| Series | SDT G3 Series 25-40kW |
|---|---|
| Series AC power range | 25-40 kW |
| Max. DC voltage | 1100 V |
| Max. DC current | 40 A |
| Strings per MPPT | 2 |
| Connectors | MC4 |
| Max. AC power | 40 kW |
| AC output voltage range | 180-280 V |
| Nominal AC voltage | 220/380; 230/400; 240/415 V |
| Max. AC current | 60.6 A |
| Frequency | 50/60 Hz |
| Power factor | 0.8 leading to 0.8 lagging |
| Maximum efficiency | 98.6 % |
| European efficiency | 97.7 % |
| Operating temperature range | -30 ~ +60 °C |
| IP rating | IP66 |
| Inverter type | On-grid |
|---|---|
| Number of MPPT | 4 |
| Inverter power | 40 kW |
| Number of phases | 3 |
| Height | 483 mm |
|---|---|
| Width | 585 mm |
| Depth | 230 mm |
| Weight | 31 kg |
