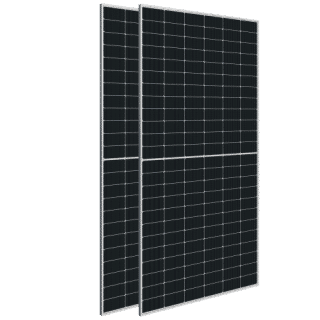

PV module Astronergy CHSM66RN(DG)/F-BH rated 615 Wp. Cells: N-type (132 pcs), bifacial, silver frame, module efficiency 22.8% (STC). Product warranty 15 years, power warranty: 87.4% after 30 years. Dimensions 2382 × 1134 × 30 mm (H × W × D), weight 32.8 kg.
| Series | ASTRO N7 CHSM66RN(DG)/F-BH 600-620 |
|---|---|
| Series power range | 600-620 Wp |
| Warranty | 15 years |
| Power warranty — point 1 (years, % output) | 30, 87.4 |
| Voltage at max. power Vmpp (STC) | 41.43 V |
| Current at max. power Impp (STC) | 14.84 A |
| Open-circuit voltage Voc (STC) | 48.89 V |
| Short-circuit current Isc (STC) | 16.02 A |
| Module efficiency (STC) | 22.8 % |
| Temperature coefficient of Pmax | -0.29 %/°C |
| Temperature coefficient of Voc | -0.25 %/°C |
| Temperature coefficient of Isc | 0.043 %/°C |
| Max. system voltage | 1500 V |
| Max. series fuse rating | 35 A |
| Number of cells | 132 |
| Glass thickness | 2+2 mm |
| Frame | Aluminium |
| Connector type | MC4-EVO2A |
| Cable cross-section | 4 mm² |
| Cable length | 350 mm |
| Cell technology | Front contact |
| Module power | 615 Wp |
|---|---|
| Cell type | N-type |
| Frame colour | Silver frame |
| Module type | Bifacial |
| Height | 2382 mm |
|---|---|
| Width | 1134 mm |
| Depth | 30 mm |
| Weight | 32.8 kg |
