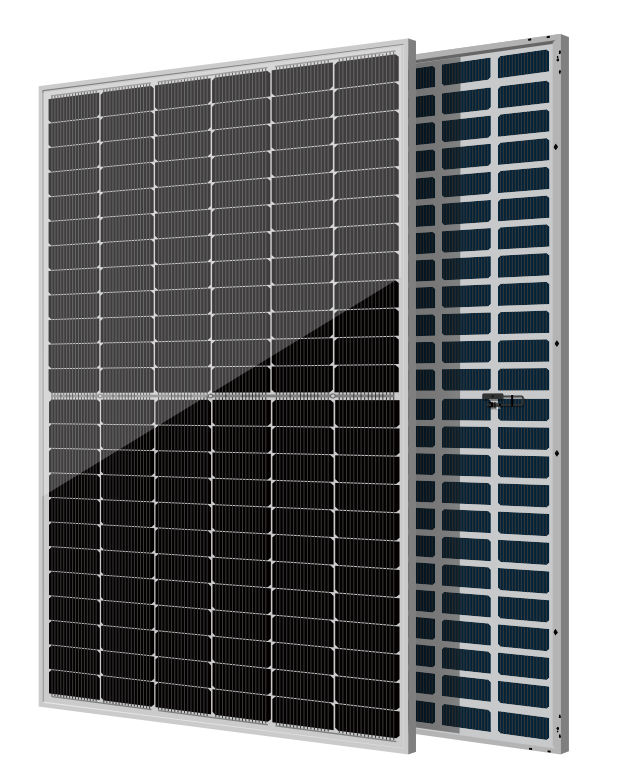

PV module ZnShine ZXM7-GPLDD144 rated 590 Wp. Cells: N-type, bifacial, silver frame, module efficiency 22.83% (STC). Product warranty 12 years, power warranty: 87.4% after 30 years. Dimensions 2279 × 1134 × 30 mm (H × W × D), weight 31 kg.
| Series | ZXM7-GPLDD144 575-605 |
|---|---|
| Series power range | 575-605 Wp |
| Warranty | 12 years |
| Power warranty — point 2 (years, % output) | 30, 87.4 |
| Voltage at max. power Vmpp (STC) | 43.2 V |
| Current at max. power Impp (STC) | 13.66 A |
| Open-circuit voltage Voc (STC) | 51.9 V |
| Short-circuit current Isc (STC) | 14.46 A |
| Module efficiency (STC) | 22.83 % |
| Power tolerance + (STC) | 3 % |
| Temperature coefficient of Pmax | -0.3 %/°C |
| Temperature coefficient of Voc | -0.25 %/°C |
| Temperature coefficient of Isc | 0.046 %/°C |
| Max. system voltage | 1500 V |
| Max. series fuse rating | 30 A |
| Number of cells | 144 |
| Glass type | Heat-strengthened glass with anti-reflective coating |
| Glass thickness | 2 mm |
| Bypass diodes | 3 |
| Junction box IP rating | IP68 |
| Connector type | MC4-EVO2 |
| Cable cross-section | 4 mm² |
| Cable length | +300mm,-200mm or Customized Length(with connectors) |
| Cell technology | Front contact |
| Module power | 590 Wp |
|---|---|
| Cell type | N-type |
| Frame colour | Silver frame |
| Module type | Bifacial |
| Height | 2279 mm |
|---|---|
| Width | 1134 mm |
| Depth | 30 mm |
| Weight | 31 kg |
