Price on request
We will check availability and get back to you with this information.
Nothing to pay now.

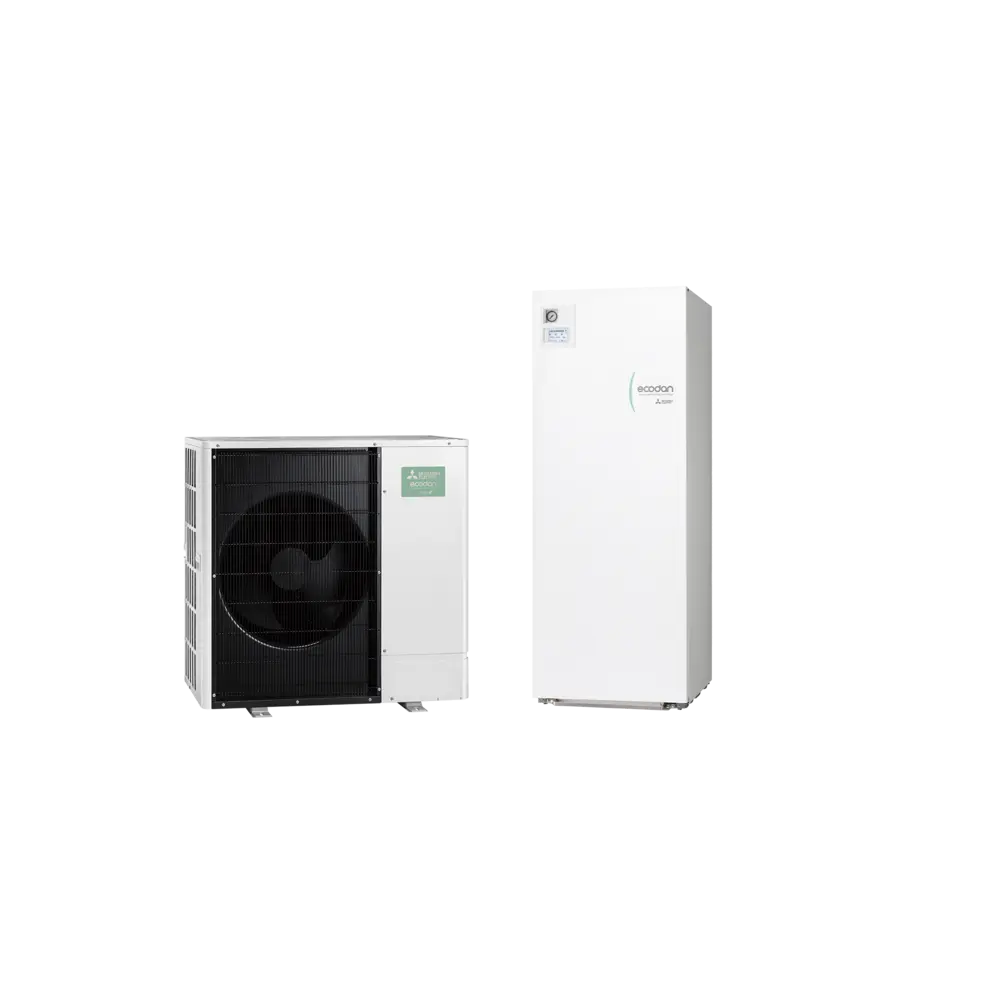

Air-to-water heat pump Mitsubishi Electric PUZ-WZ80VAA + EHPT17X-YM9E with 8 kW heating capacity, refrigerant R290 (propane), compressor: inverter. SCOP 4.42 (W35), COP 4.7 (A7/W35), energy class A++, seasonal space heating efficiency ηs 174% (W35). Max. flow temperature 75 °C, min. outdoor operating temperature −25 °C, power supply single-phase, SG Ready. Outdoor unit: 1020 × 1050 × 480 mm (H × W × D), 117 kg, sound power level 58 dB(A).
| AC input voltage | 220-240 V |
|---|---|
| COP (A-7/W35) | 3.04 |
| COP (A2/W35 or B0/W35) | 4.13 |
| COP (A7/W35) | 4.7 |
| Compressor type | Inverter |
| Frequency | 50 Hz |
| Functions | Heating, cooling, DHW |
| Max. power input | 4.96 kW |
| Max. flow water temperature | 75 °C |
| Min. outdoor operating temperature | -25 °C |
| Number of compressors | 2 |
| Number of phases | 1 |
| Rated power input (heating) | 1.70 kW |
| Refrigerant charge | 1 kg |
| Refrigerant GWP | 3 |
| Seasonal space heating efficiency ηs (W55) | 138 % |
| Grid readiness (SG Ready) | SG Ready |
|---|---|
| Heat pump type | Air-to-water |
| Heating capacity | 8 kW |
| Refrigerant | R290 (propane) |
| SCOP (average climate, W35) | 4.42 |
| Seasonal energy class (W35) | A++ |
| Seasonal space heating efficiency ηs (W35) | 174 % |
| Height | 1400 mm |
|---|---|
| Length | 680 mm |
| Outdoor unit height | 1020 mm |
| Outdoor unit length | 480 mm |
| Outdoor unit weight | 117 kg |
| Outdoor unit width | 1050 mm |
| Sound power level, indoor unit (LwA) | 40 dB(A) |
| Sound power level, outdoor unit (LwA) | 58 dB(A) |
| Weight | 85 kg |
| Width | 595 mm |
