End of life — last units
from 46.57 € 0.115 €/Wp
Quantity-tier prices are visible to registered companies.
No payment now. Transport is quoted after you place the order and needs your approval.

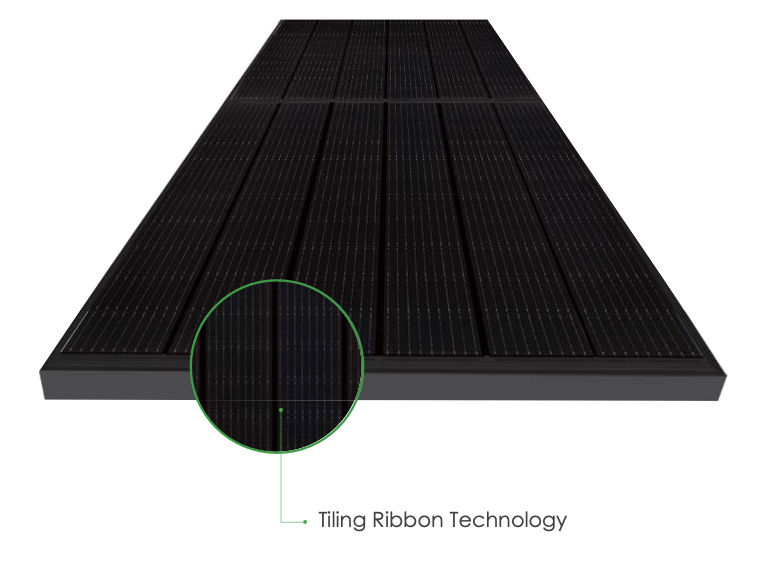

PV module Jinko JKM405N-6RL3-B rated 405 Wp. Cells: N-type (132 pcs), monofacial, Full black, module efficiency 21.22% (STC). Product warranty 25 years, power warranty: 87.4% after 30 years. Dimensions 1855 × 1029 × 30 mm (H × W × D), weight 20.8 kg.
| Series | JKM385-405N-6RL3-B |
|---|---|
| Series power range | 385-405 Wp |
| Warranty | 25 years |
| Power warranty — point 1 (years, % output) | 30, 87.4 |
| Voltage at max. power Vmpp (STC) | 38.28 V |
| Current at max. power Impp (STC) | 10.58 A |
| Open-circuit voltage Voc (STC) | 45.89 V |
| Short-circuit current Isc (STC) | 11.16 A |
| Module efficiency (STC) | 21.22 % |
| Temperature coefficient of Pmax | -0.34 %/°C |
| Temperature coefficient of Voc | -0.28 %/°C |
| Temperature coefficient of Isc | 0.048 %/°C |
| Max. system voltage | 1500 V |
| Max. series fuse rating | 20 A |
| Number of cells | 132 |
| Glass type | Low-iron tempered glass with anti-reflective coating, high transmission |
| Glass thickness | 3.2 mm |
| Frame | Anodised aluminium alloy |
| Junction box IP rating | IP68 |
| Cable cross-section | 4 mm² |
| Cable length | (+): 290mm , (-): 145mm or Customized Length |
| Module power | 405 Wp |
|---|---|
| Cell type | N-type |
| Frame colour | Full black |
| Module type | Monofacial |
| Height | 1855 mm |
|---|---|
| Width | 1029 mm |
| Depth | 30 mm |
| Weight | 20.8 kg |
