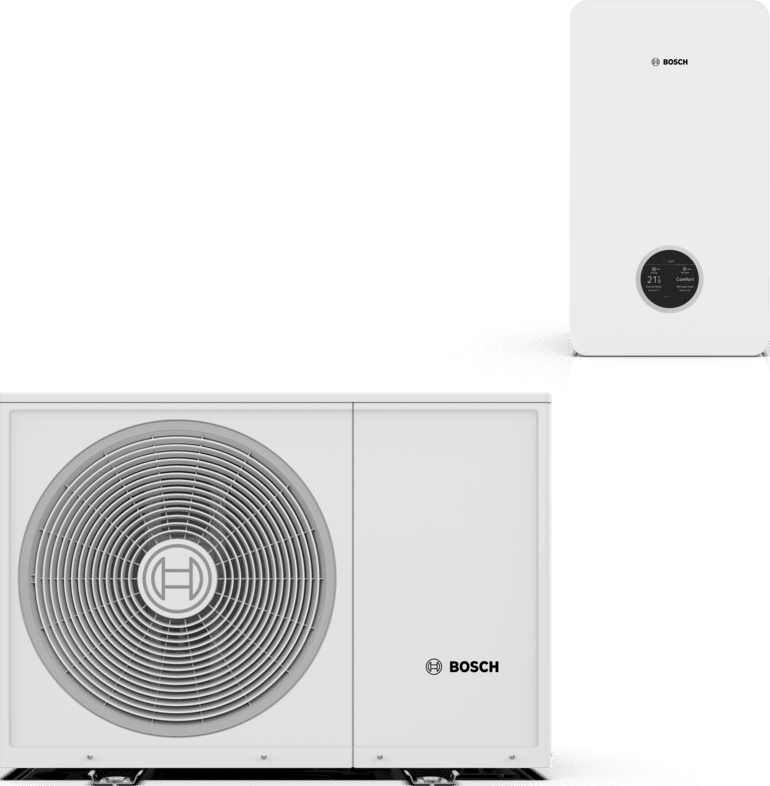

Bosch 10 kW CS3800iAW 10 OE-T
- Power
- 10 kW
- Availability
- On order
- Minimum order
- 1 pcs
Downloads
- PDF Manufacturer datasheet 9.4 MB
Price on request
We will check availability and get back to you with this information.
Nothing to pay now.
Description
Air-to-water heat pump Bosch CS3800iAW 10 OE-T with 10 kW heating capacity, refrigerant R290 (propane), compressor: inverter. SCOP 5.01 (W35), COP 4.73 (A7/W35), energy class A+++, seasonal space heating efficiency ηs 197% (W35). Power supply three-phase, min. outdoor operating temperature −22 °C, SG Ready. Outdoor unit sound power level 49 dB(A).
Technical data
Product details
| Compressor type | Inverter |
|---|---|
| Cooling capacity | 6 kW |
| Max. power input | 4.7 kW |
| Min. outdoor operating temperature | -22 °C |
| Number of compressors | 1 |
| Number of phases | 3 |
| Rated power input (heating) | 2.11 kW |
| Refrigerant charge | 1.37 kg |
| Refrigerant GWP | 3 |
| Seasonal space heating efficiency ηs (W55) | 154 % |
| COP (A-7/W35) | 3.19 |
| COP (A2/W35 or B0/W35) | 3.82 |
| COP (A7/W35) | 4.73 |
Main parameters
| Grid readiness (SG Ready) | SG Ready |
|---|---|
| Heating capacity | 10 kW |
| Refrigerant | R290 (propane) |
| SCOP (average climate, W35) | 5.01 |
| Seasonal energy class (W35) | A+++ |
| Seasonal space heating efficiency ηs (W35) | 197 % |
| Heat pump type | Air-to-water |
Dimensions and weight
| Sound power level, indoor unit (LwA) | 34 dB(A) |
|---|---|
| Sound power level, outdoor unit (LwA) | 49 dB(A) |
