Price on request
We will check availability and get back to you with this information.
Nothing to pay now.

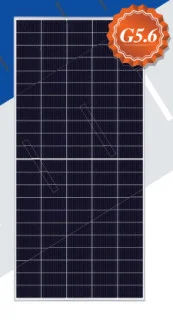

PV module Risen RSM110-8-550M SF rated 550 Wp. Cells: P-type, monofacial, silver frame, module efficiency 21% (STC). Product warranty 12 years, power warranty: 84.8% after 25 years. Dimensions 2384 × 1096 × 35 mm (H × W × D), weight 29 kg.
| Series | RSM110-8-530M-555M |
|---|---|
| Series power range | 530-555 Wp |
| Warranty | 12 years |
| Power warranty — point 1 (years, % output) | 25, 84.8 |
| Voltage at max. power Vmpp (STC) | 31.86 V |
| Current at max. power Impp (STC) | 17.27 A |
| Open-circuit voltage Voc (STC) | 38.24 V |
| Short-circuit current Isc (STC) | 18.28 A |
| Module efficiency (STC) | 21 % |
| Temperature coefficient of Pmax | -0.34 %/°C |
| Temperature coefficient of Voc | -0.25 %/°C |
| Temperature coefficient of Isc | 0.04 %/°C |
| Max. system voltage | 1500 V |
| Max. series fuse rating | 30 A |
| Number of cells | 110 |
| Glass type | Heat-strengthened glass with anti-reflective coating |
| Frame | Anodised aluminium alloy |
| Bypass diodes | 3 |
| Junction box IP rating | IP68 |
| Connector type | Risen Twinsel PV-SY02 |
| Cable cross-section | 4 mm² |
| Cable length | 350 mm |
| Cell technology | Front contact |
| Module power | 550 Wp |
|---|---|
| Cell type | P-type |
| Frame colour | Silver frame |
| Module type | Monofacial |
| Height | 2384 mm |
|---|---|
| Width | 1096 mm |
| Depth | 35 mm |
| Weight | 29 kg |
