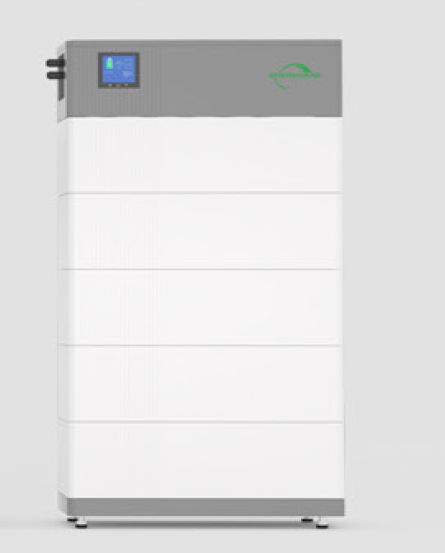

Enershare 12 kWh Power-Core HV (5 units + BMS)

Capacity: 12.0 kWh
Availability: Shipped from the warehouse in Hungary
: Number of offers: 1
Minimum order: 1 pcs
Incoterms: EXW

Downloads

PDF Datasheet — Film monta u YouTube 1.2 MB

Capacity

4.8 kWh 7.2 kWh 9.6 kWh 12 kWh

Set

modulesmodules + BMS

Net price by quantity

from 1,980.00 €

Quantity-tier prices are visible to registered companies.

No payment now. Transport is quoted after you place the order and needs your approval.

Description

Battery set Enershare Power-Core 12 kWh HV (5 units + BMS), LiFePO4 (LFP), high voltage (HV), voltage 512 V. Operating voltage 432–584 V, communication CAN 2.0 / RS485, IP rating IP65. Application: residential, BMS included: yes, efficiency 96%. Dimensions 1150 × 650 × 260 mm (H × W × D), weight 195 kg, warranty 10 years.

Manufacturer information

Enershare Power-Core 12 kWh high-voltage stack battery set: 5 Power-Core battery units (2.4 kWh, 102.4 V, 23.5 Ah each) + Enershare Smart BMS 1.0, nominal voltage 512 V (operating range 432-584 V). LFP (lithium iron phosphate) chemistry Max output current 25 A, peak 50 A (5 s) Round-trip efficiency ≥ 96 % IP65 aluminium housing, suitable for indoor and outdoor installation, operating temperature -10...+55 °C Stackable plug-and-play design: direct stack connection, no additional wires or screws, ≤ 35 kg per unit, one-person installation Set-up free: automatic inverter and battery system configuration, intelligent display (key info, error codes, SOC) 1- and 3-phase, on-grid, on-grid backup and off-grid applications; no DC/DC stage Scalable from 4.8 to 12 kWh per tower (2-5 units), up to 6 towers in parallel (up to 72 kWh); Power-Core and Energy-Core cannot be mixed in parallel Dimensions (H x W x D): 1150 x 650 x 260 mm, weight 195 kg Certification: IEC 62619, VDE, CE, UN38.3, UKCA Warranty: 10 years

Technical data

Main parameters

Capacity	12 kWh
Battery voltage	512 V
Cell technology	LiFePO4 (LFP)
Application	Residential

Product details

Series	Battery Core Power-Core
Warranty	10 years
Number of battery modules	5
Min. voltage	432 V
Max. voltage	584 V
IP rating	IP65
Max. charge / discharge temperature	55/55 °C
Min. charge / discharge temperature	-10/-10 °C
Communication protocol	CAN 2.0 / RS485
Battery module	Enershare Power-Core unit 2.4 kWh, 102.4 V, 23.5 Ah, LFP (x5)
BMS included	Yes
System type (HV / LV)	High voltage (HV)
Efficiency	96 %
Compatible inverters	GoodWe ET (5-10 kW, 40-50 kW), BT; Solis S6-EH3P(3-20)K-H; Deye / Sunsynk SUN-(5-50)K-SG01HP3-EU; Solinteg MHS-3-8K, MHT-4-20K; Hoymiles HYT-(5.0-12.0)HV-EUG1, HAT-(5.0-10.0)HV-EUG1; Afore AF3-20K-TH, AF3-20K-MTH; Sinexcel Isuna 5000-20000T (Enershare compatibility list V1.5 for Power-Core with 5 stacks; minimum inverter and BMS firmware applies)
Compatible BMS	Enershare Smart BMS 1.0 included in the set (120-600 V, 30 A, CAN 2.0 / RS485); one BMS per tower; BMS firmware ≥ V1.6-1.5 for GoodWe, Solis, Deye/Sunsynk, Solinteg and ≥ V1.8-1.5 for Hoymiles, Afore, Sinexcel
