from 1,170.25 €
Quantity-tier prices are visible to registered companies.
No payment now. Transport is quoted after you place the order and needs your approval.

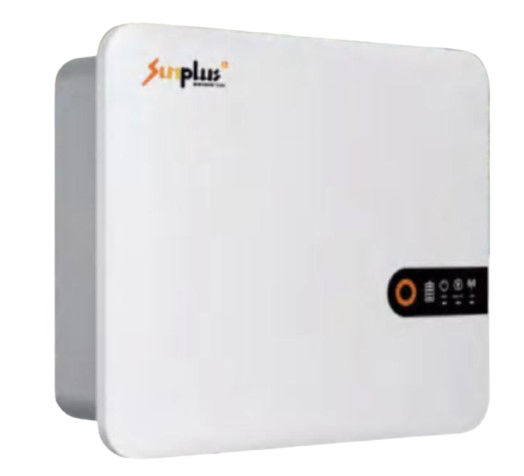

Hybrid inverter Sunplus SP1S-3P8K-H rated 8 kW, three-phase, 2 MPPT. Max. DC voltage 1000 V, maximum efficiency 97.6%, European efficiency 97%. IP rating IP66, operating temperature −30 to 60 °C. Dimensions 442 × 516 × 222 mm (H × W × D), weight 24 kg, warranty 5 years.
| Series | SP1S-3P3-15K-H |
|---|---|
| Product warranty | 5 years |
| Series AC power range | 3-15 kW |
| Max. DC power | 10 kW |
| Max. DC voltage | 1000 V |
| Max. DC current | 16/32 A |
| Strings per MPPT | 1/1 |
| Max. AC current | 15.8 A |
| Frequency | 50/60 Hz |
| Power factor | 0.99 |
| Maximum efficiency | 97.6 % |
| European efficiency | 97 % |
| Operating temperature range | -30 ~ 60 °C |
| IP rating | IP66 |
| Protection features | Anti-flow Protection, PV DC Reverse Protection, DC Circuit Breaker, Insulation Resistor Detection, Leakage Current Monitoring AC Output Short Circuit Protection, Output Over Current Protection, Grid Monitoring, Anti-islanding Protection, Residual Current Monitoring. Battery Reverse Polarity Protection, Off-grid Overload Protection. |
| Inverter type | Hybrid |
|---|---|
| Number of MPPT | 2 |
| Inverter power | 8 kW |
| Number of phases | 3 |
| Height | 442 mm |
|---|---|
| Width | 516 mm |
| Depth | 222 mm |
| Weight | 24 kg |
