from 3,612.17 €
Quantity-tier prices are visible to registered companies.
No payment now. Transport is quoted after you place the order and needs your approval.

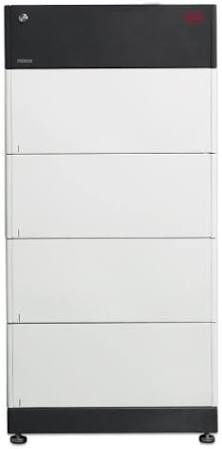

Battery set BYD HVM 11.0 with 11.04 kWh capacity (4 modules), LiFePO4 (LFP), high voltage (HV), voltage 204.8 V. Operating voltage 160–230.4 V, communication CAN / RS485, IP rating IP55. Application: residential. Dimensions 1227 × 610 × 282 mm (H × W × D), weight 179.7 kg, warranty 10 years.
| Series | BATTERY-BOX HVM+ |
|---|---|
| Warranty | 10 years |
| Number of battery modules | 4 |
| Min. voltage | 160 V |
| Max. voltage | 230.4 V |
| IP rating | IP55 |
| Communication protocol | CAN / RS485 |
| System type (HV / LV) | High voltage (HV) |
| Capacity | 11.04 kWh |
|---|---|
| Battery voltage | 204.8 V |
| Cell technology | LiFePO4 (LFP) |
| Application | Residential |
| Height | 1227 mm |
|---|---|
| Width | 610 mm |
| Length | 282 mm |
| Weight | 179.7 kg |
