from 72.64 € 0.163 €/Wp
Quantity-tier prices are visible to registered companies.
No payment now. Transport is quoted after you place the order and needs your approval.

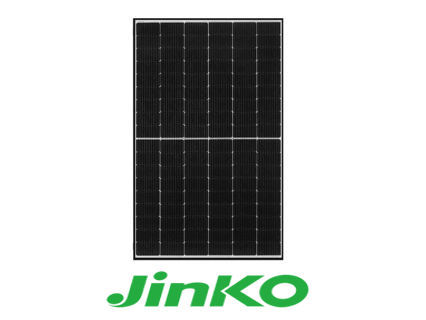

PV module Jinko JKM445N-54HL4R-B rated 445 Wp, Tiger Neo N-type 54HL4R-(V) 425-445 Watt series. Cells: N-type (108 pcs), monofacial, Full black, module efficiency 22.27% (STC). Product warranty 15 years, power warranty: 87.4% after 30 years. Dimensions 1762 × 1134 × 30 mm (H × W × D), weight 22 kg.
| Series | Tiger Neo N-type 54HL4R-(V) 425-445 Watt |
|---|---|
| Series power range | 425-445 Wp |
| Warranty | 15 years |
| Power warranty — point 1 (years, % output) | 30, 87.4 |
| Voltage at max. power Vmpp (STC) | 33.02 V |
| Current at max. power Impp (STC) | 13.48 A |
| Open-circuit voltage Voc (STC) | 39.59 V |
| Short-circuit current Isc (STC) | 13.93 A |
| Module efficiency (STC) | 22.27 % |
| Power tolerance + (STC) | 3 % |
| Temperature coefficient of Pmax | -0.29 %/°C |
| Temperature coefficient of Voc | -0.25 %/°C |
| Temperature coefficient of Isc | 0.045 %/°C |
| Max. system voltage | 1500 V |
| Number of cells | 108 |
| Glass type | Low-iron tempered glass with anti-reflective coating, high transmission |
| Glass thickness | 3.2 mm |
| Frame | Anodised aluminium alloy |
| Cable cross-section | 4 mm² |
| Cable length | 400 mm |
| Cell technology | Front contact |
| Module power | 445 Wp |
|---|---|
| Cell type | N-type |
| Frame colour | Full black |
| Module type | Monofacial |
| Height | 1762 mm |
|---|---|
| Width | 1134 mm |
| Depth | 30 mm |
| Weight | 22 kg |
