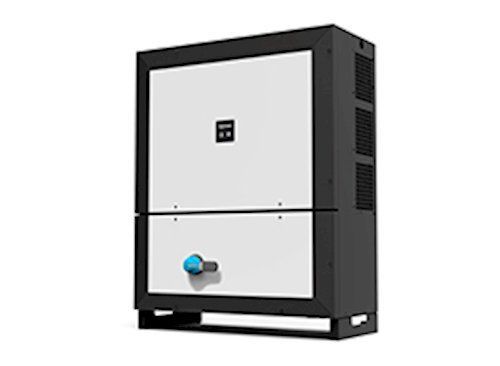

Ingeteam 100 kW 3Play 100TL

Leistung: 100 kW
Verfügbarkeit: Auf Bestellung
: Anzahl der Angebote: 1
Mindestbestellung: 1 Stk.

Downloads

PDF Datenblatt — 3play20sun20storage20tl20series20100tl 0,9 MB

Nettopreis nach Menge

ab 7 062,00 €

Staffelpreise sind für registrierte Unternehmen sichtbar.

Keine Zahlung jetzt. Der Transport wird nach der Bestellung kalkuliert und von Ihnen freigegeben.

Beschreibung

Netzgekoppelter Wechselrichter (On-Grid) Ingeteam 3Play 100TL mit 100 kW Nennleistung. Max. DC-Spannung 1100 V, max. Wirkungsgrad 98,8 %, europäischer Wirkungsgrad 98,1 %. Schutzart IP65. Abmessungen 905 × 720 × 315 mm (H × B × T), Gewicht 80 kg, Garantie 5 Jahre.

Herstellerangaben

THREE-PHASE TRANSFORMERLESS BATTERY INVERTER WITH THE MAXIMUM POWER DENSITY Three-phase battery inverters for commercial, industrial and large-scale systems. These bidirectional storage inverters feature the same technology as Ingeteam’s central photovoltaic inverters. Lower operational costs Thanks to the wireless communication network that the INGECON® SUN STORAGE 100TL enables, the storage system could be commissioned, monitored and controlled without cables. Moreover, its string inverter philosophy allows for a fast and easy replacement that does not require qualified technicians. Greater flexibility and power density A greater flexibility is possible thanks to its maximum DC voltage (1,100 V) and to its wide input voltage range (570-850 V). Great power density, with 100 kW of power in only 80 kg. Robust and long-lasting design Aluminium casing, especially conceived for outdoor installations (IP65). The design of the INGECON® SUN STORAGE 3Play inverter family guarantees the maximum life expectancy and the best features, even with high temperatures. Ethernet and Wi-Fi as standard This battery inverter features Ethernet and Wi-Fi communications as standard. These communications, together with the webserver that the inverter integrates, allow for a faster and more reliable commissioning by using a mobile phone, tablet or laptop. Furthermore, it is compatible with an external Cloud Connect. EMS Inside The inverter is equipped as standard with an energy management system (EMS). The EMS permits more advanced functionalities, such as self-consumption. Thanks to the built-in EMS, the installation can be monitored at all times via a Smartphone or a PC with the free INGECON® SUN Monitor application, available at the Play Store and App Store. Standard 5 year warranty, extendable upon request.

Technische Daten

Hauptparameter

Wechselrichterleistung	100 kW
Wechselrichtertyp	Netzgekoppelt (On-Grid)

Produktdetails

Serie	3Play SUN STORAGE TL Series 100TL
Produktgarantie	5 Jahre
Max. DC-Leistung	60 kW
Max. DC-Spannung	1100 V
Max. DC-Strom	96 A
Max. AC-Leistung	60 kW
AC-Nennspannung	400 V
Max. AC-Strom	87 A
Frequenz	50, 60 Hz
Leistungsfaktor	1
Max. Wirkungsgrad	98,8 %
Europäischer Wirkungsgrad	98,1 %
Betriebstemperaturbereich	–25 ~ +60 °C
Schutzart (IP)	IP65
Relative Luftfeuchte	0-100 %
Kühlung	Forced ventilation
Max. Höhe ü. NN	3000 m
Schutzfunktionen	Internal Overvoltage Protection DC Insulation Rsistance Detection Grid Monitoring GFCI Monitoring DCI Monitoring AC Short Circuit Current Protection AC Grounding Detection DC Surge Protection AC Surge Protection Anti-islanding Protection AFCI Protection
