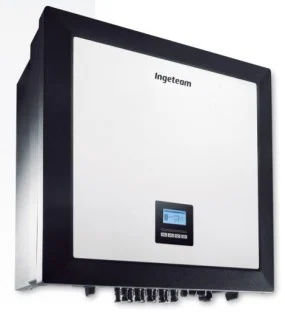

Ingeteam 20 kW 3Play 20TL

Leistung: 20 kW
Phasen: 3‑phasig
Verfügbarkeit: Auf Bestellung
: Anzahl der Angebote: 1
Mindestbestellung: 1 Stk.

Downloads

PDF Datenblatt — 3play20tl20series 0,3 MB

Nettopreis nach Menge

ab 2 241,36 €

Staffelpreise sind für registrierte Unternehmen sichtbar.

Keine Zahlung jetzt. Der Transport wird nach der Bestellung kalkuliert und von Ihnen freigegeben.

Beschreibung

Netzgekoppelter Wechselrichter (On-Grid) Ingeteam 3Play 20TL mit 20 kW Nennleistung, dreiphasig, 1 MPP-Tracker. Max. DC-Spannung 1000 V, max. Wirkungsgrad 98,5 %, europäischer Wirkungsgrad 98,3 %. Schutzart IP65, Kühlung: lüfter. Abmessungen 735 × 706 × 268 mm (H × B × T), Gewicht 46,8 kg, Garantie 5 Jahre.

Herstellerangaben

A three-phase inverter family for domestic, industrial and large-scale PV plants. Maximum efficiency at the best price A single DC-to-AC power conversion stage with an advanced single maximum power point tracking system (MPPT), that makes it possible to harness the maximum energy from the PV array at the most competitive price. Plug & Play technology Extremely easy to install. The inverter connection is fast and simple. The country-specific configuration and language can be easily selected from the inverter screen. Rugged design Steel casing, especially designed for indoor and outdoor applications (IP65). Able to withstand extreme temperatures. The INGECON® SUN 3Play TL inverters have been designed to guarantee long life expectancy, as demonstrated by the stress tests they are subjected to. Ease of maintenance Internal datalogger for up to 3 months data storage. Control either from a remote PC or on-site from the inverter front keypad. Status and alarm LED indicators. LCD screen. Easy to operate The INGECON® SUN 3Play TL inverters feature a LCD screen for the simple and convenient monitoring of the inverter status and a range of internal variables. The display also includes three LEDs to show the inverter operating status. All this helps to simplify and facilitate maintenance tasks. Software included Included at no extra cost are the INGECON® SUN Manager, INGECON® SUN Monitor and its smartphone version Web Monitor for monitoring and recording the inverter data over the internet. RS-485 communications are supplied as standard. In addition, users can download the latest version of the firmware from the Ingeteam website: and update it using a simple SD memory card. Standard 5 year warranty, extendable for up to 25 years

Technische Daten

Hauptparameter

Wechselrichterleistung	20 kW
Wechselrichtertyp	Netzgekoppelt (On-Grid)
Anzahl MPP-Tracker	1
Phasenzahl	3

Produktdetails

Serie	3Play TL Series
Produktgarantie	5 Jahre
Max. DC-Leistung	26,8 kW
Max. DC-Spannung	1000 V
Max. DC-Strom	37 A
Strings pro MPP-Tracker	1
AC-Ausgangsspannungsbereich	187-528 V
AC-Nennspannung	400 V
Max. AC-Strom	29 A
Frequenz	50, 60 Hz
Leistungsfaktor	1
Max. Wirkungsgrad	98,5 %
Europäischer Wirkungsgrad	98,3 %
Transformator	Transformatorlos
Schutzart (IP)	IP65
Relative Luftfeuchte	0-100 %
Kühlung	Lüfter
Schnittstellen	RS 485
Anzeige	LCD
Schutzfunktionen	Internal Overvoltage Protection DC Insulation Rsistance Detection Grid Monitoring GFCI Monitoring DCI Monitoring AC Short Circuit Current Protection AC Grounding Detection DC Surge Protection AC Surge Protection Anti-islanding Protection AFCI Protection
