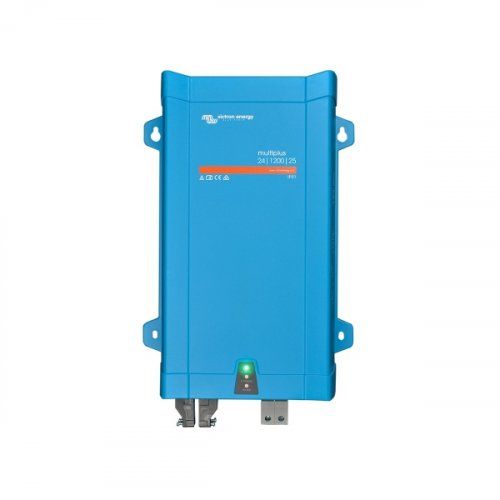

Victron 1,2 kW MultiPlus 24/1200/25

Galia: 1,2 kW
Fazės: 3‑fazių
Prieinamumas: Sandėlyje
: Pasiūlymų skaičius: 11
Minimalus užsakymas: 1 vnt.
Incoterms: CIF, EXW, FCA

Atsisiuntimui

PDF Techninis aprašas — victron-multiplus-24120025-multiplus-invertercharger-500va-1200va 0,1 MB

Grynoji kaina pagal kiekį

nuo 249,70 €

Kiekio kainų ribos matomos registruotoms įmonėms.

Dabar nieko nemokate. Transporto kainą apskaičiuosime pateikus užsakymą; ją turėsite patvirtinti.

Aprašymas

Autonominis keitiklis Victron MultiPlus 24/1200/25, nominali galia 1,2 kW, vienfazis. Maks. nuolatinės srovės įtampa 24 V. IP klasė IP21, darbinė temperatūra nuo −40 iki 65 °C, aušinimas: ventiliatorius. Matmenys 406 × 250 × 100 mm (A × P × G), masė 8,2 kg.

Gamintojo informacija

Proven reliability The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverter is short circuit proof and protected against overheating, whether due to overload or high ambient temperature. PowerControl - Dealing with limited generator, shore side or grid power (800VA/1200VA) With the Multi Control Panel a maximum generator or shore current can be set. The MultiPlus will then take account of other AC loads and use whatever is extra for charging, thus preventing the generator or shore supply from being overloaded. PowerAssist - Boosting the capacity of shore or generator power (800VA/1200VA) Where peak power is so often required only for a limited period, the MultiPlus will make sure that insufficient shore or generator power is immediately compensated for by power from the battery. When the load reduces, the spare power is used to recharge the battery. High start-up power Needed to start high inrush loads such as power converters for LED lamps, halogen lamps or electric tools. Search Mode When Search Mode is ‘on’, the power consumption of the inverter in no-load operation is decreased by approx. 70%. In this mode the Multi, when operating in inverter mode, is switched off in case of no load or very low load, and switches on every two seconds for a short period. If the output current exceeds a set level, the inverter will continue to operate. If not, the inverter will shut down again. Programmable relay By default, the programmable relay is set as an alarm relay, i.e. the relay will de-energise in the event of an alarm or a pre-alarm (inverter almost too hot, ripple on the input almost too high, battery voltage almost too low). Remote on / off / charger on Three pole connector.

Techniniai duomenys

Produkto duomenys

Fazių skaičius	1
Serija	MultiPlus Inverter/Charger 500VA - 1200VA
Produkto garantija	5 upgradable to 10 metai
Serijos kintamosios srovės galios diapazonas	0.5-1.2 kW
Didžiausia nuolatinė įtampa	24 V
Dažnio diapazonas	45-65 Hz
Darbo temperatūros diapazonas	-40 ~ +65 °C
IP klasė	IP21
Santykinis drėgnis	95 %
Aušinimas	Ventiliatorius
Apsaugos funkcijos	Internal Overvoltage Protection DC Insulation Rsistance Detection Grid Monitoring GFCI Monitoring DCI Monitoring AC Short Circuit Current Protection AC Grounding Detection DC Surge Protection AC Surge Protection Anti-islanding Protection AFCI Protection
