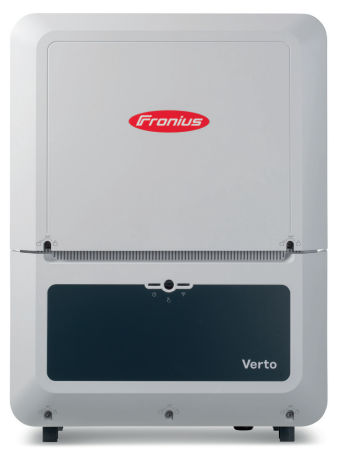

Fronius 20 kW Verto 20.0

Leistung: 20 kW
Phasen: 3‑phasig
Verfügbarkeit: Auf Lager
: Anzahl der Angebote: 6
Mindestbestellung: 1 Stk.
Incoterms: CIF, EXW, FCA

Downloads

PDF Datenblatt — verto 2,3 MB

Nettopreis nach Menge

ab 2 395,80 €

Staffelpreise sind für registrierte Unternehmen sichtbar.

Keine Zahlung jetzt. Der Transport wird nach der Bestellung kalkuliert und von Ihnen freigegeben.

Beschreibung

Netzgekoppelter Wechselrichter (On-Grid) Fronius Verto 20.0 mit 20 kW Nennleistung, dreiphasig, 3 MPP-Tracker. Max. DC-Spannung 1000 V, max. Wirkungsgrad 98,56 %, europäischer Wirkungsgrad 98,33 %. Abmessungen 730 × 540 × 278 mm (H × B × T), Gewicht 35,2 kg.

Herstellerangaben

01 Total flexibility The Fronius Verto offers maximum flexibility with up to four high-current MPP trackers and a wide voltage range. This makes the inverter ideally suited to complex system designs and all your individual requirements. What’s more, the Fronius Verto uses an integrated Dynamic Peak Manager algorithm that enables users to achieve optimal yields even in shady conditions. 02 Maximum safety With an integrated surge protection device and an Arc Fault Circuit Interrupter (Fronius Arc Guard), the Fronius Verto guarantees the very highest safety standards even in its basic configuration, without the need to pay for additional components. With Fronius, you can also rest assured that your data is in the best hands. This is ensured by our certified information security system and our servers and cloud storage in Europe. 03 Optimal use Use excess solar energy for other PV applications such as e-mobility or heat, save costs, and ensure faster amortization for your system. Thanks to its open interfaces, the Fronius Verto enables easy integration of consumption regulators, such as the Fronius Ohmpilot or Fronius Wattpilot Flex. A perfect addition to your PV system: Our Fronius EMIL software solution supplies your e-fleet with electricity in a fully automated process across all locations. Heat pumps or smarthome systems are easy to integrate and work well with the Fronius Verto.

Technische Daten

Produktdetails

Serie	Verto
Produktgarantie	15-33.3 Jahre
AC-Leistungsbereich der Serie	15-33.3 kW
Max. DC-Leistung	30 kW
Max. DC-Spannung	1000 V
Max. DC-Strom	100 A
Strings pro MPP-Tracker	2/1/1
DC-Eingänge	4
Steckverbinder	MC4
Max. AC-Leistung	20 kW
AC-Ausgangsspannungsbereich	380-480 V
AC-Nennspannung	400 V
Frequenzbereich	45-65 Hz
Frequenz	50/60 Hz
Max. Wirkungsgrad	98,56 %
Europäischer Wirkungsgrad	98,33 %
Schutzfunktionen	DC/AC SPD, RCMU, Arc Fault, WSD, Polarity Reversal
