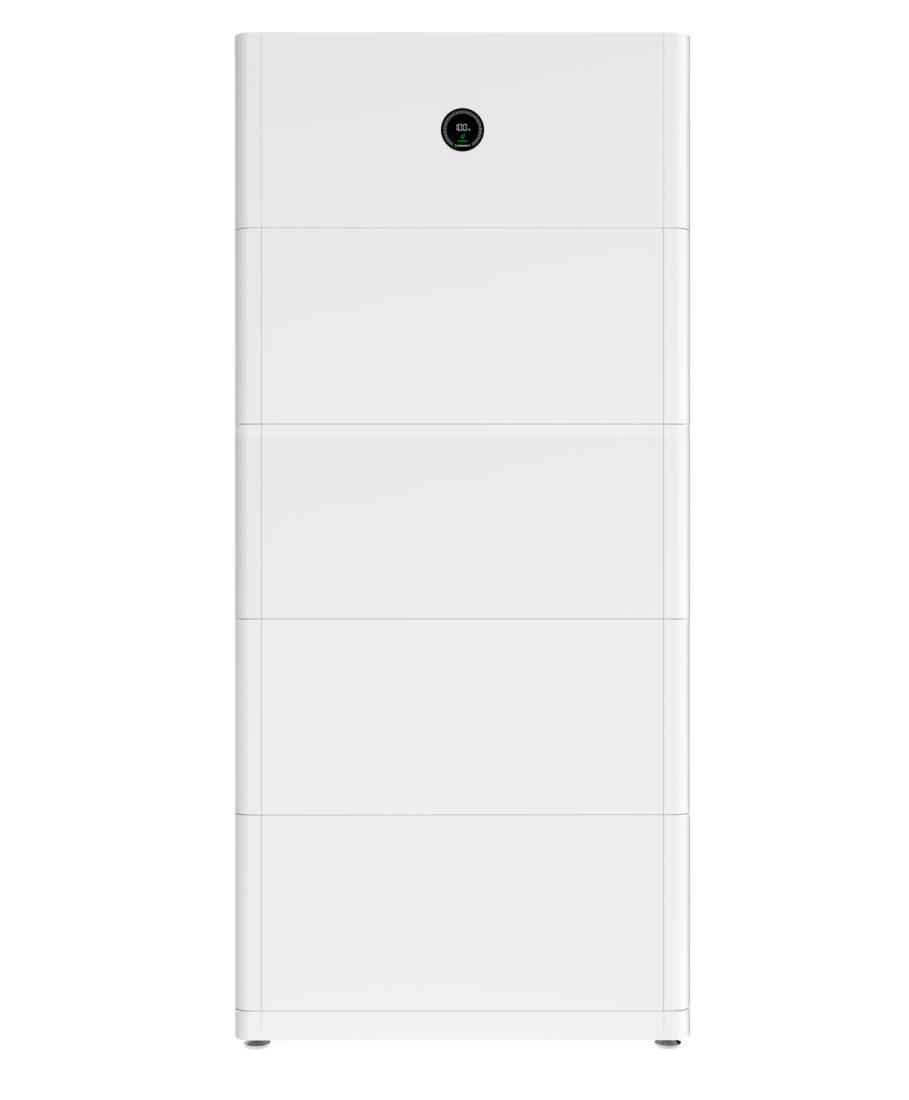

Growatt 25 kWh APX 25.0M-S3

Growatt 25 kWh APX 25.0M-S3

Kapazität
25,0 kWh
Verfügbarkeit
Auf Lager
Anzahl der Angebote: 2
Mindestbestellung
1 Stk.
Incoterms
CIF, EXW, FCA

Nettopreis nach Menge

ab 5 544,00 €

Staffelpreise sind für registrierte Unternehmen sichtbar.

Keine Zahlung jetzt. Der Transport wird nach der Bestellung kalkuliert und von Ihnen freigegeben.

Beschreibung

Batterieset Growatt APX 25.0M-S3 mit 25 kWh Kapazität (4 Module), LiFePO4 (LFP), Hochvolt (HV), Spannung 400 V. Betriebsspannung 350–550 V, Kommunikation CAN/RS485, Schutzart IP66. Anwendung: Gewerbe und Industrie (C&I). Abmessungen 1485 × 590 × 255 mm (H × B × T), Gewicht 233,2 kg, Garantie 10 Jahre.

Herstellerangaben

Flexible capacity options, 5kWh to 30kWh Unified master module compatible with both single&three phase systems Module level energy optimization Support to mix new and old battery modules in one system Stacked design with no wiring simplifies installation Wider operating temperature range from -20°C to 55°C

Technische Daten

Produktdetails

SerieAPX HV Battery 2.0
Garantie10 Jahre
Anzahl Batteriemodule4
Spannung min.350 V
Spannung max.550 V
Schutzart (IP)IP66
KommunikationsprotokollCAN/RS485
Kompatibles BMSAPX 5.0M-B3
BatteriemodulAPX 5.0P-B3
Systemtyp (HV / LV)Hochvolt (HV)

Hauptparameter

Kapazität25 kWh
Batteriespannung400 V
ZellentechnologieLiFePO4 (LFP)
AnwendungGewerbe und Industrie (C&I)

Maße und Gewicht

Höhe1485 mm
Breite590 mm
Länge255 mm
Gewicht233,2 kg
