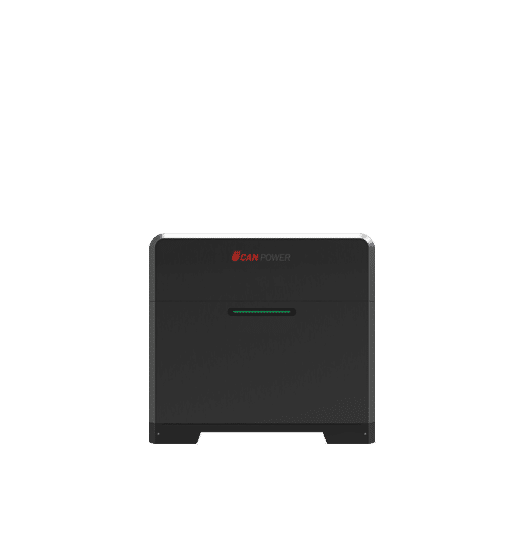

UCanPower 4,6 kWh ULB-5120MT

UCanPower 4,6 kWh ULB-5120MT

Kapazität
4,6 kWh
Verfügbarkeit
Auf Bestellung
Mindestbestellung
1 Stk.

Preis auf Anfrage

Wir prüfen die Verfügbarkeit und melden uns mit dieser Information bei Ihnen.

Sie zahlen jetzt nichts.

Beschreibung

Batteriemodul UCanPower ULB-5120MT mit 4,6 kWh Kapazität, LiFePO4 (LFP), Niedervolt (LV), Spannung 51,2 V. Betriebsspannung 44,8–57,6 V, Kommunikation RS485/CAN 2.0. Anwendung: Privathaushalt. Abmessungen 620 × 200 × 675 mm (H × B × T), Gewicht 70 kg.

Herstellerangaben

ULB series is a low voltage battery that offers multiple energy storage options through an expandable modular design (1-4 modules combined), which further simplifies installa- tion and O&M with multiple smart functions. The safest battery cell technology (LFP) comes with a high charging rate, ensuring superior performance.

Technische Daten

Produktdetails

SerieULB-5120MT
Systemtyp (HV / LV)Niedervolt (LV)
Spannung min.44,8 V
Spannung max.57,6 V
Max. Lade-/Entladetemperatur50/50 °C
Min. Lade-/Entladetemperatur0/-10 °C
KommunikationsprotokollRS485/CAN 2.0

Hauptparameter

Kapazität4,6 kWh
Batteriespannung51,2 V
ZellentechnologieLiFePO4 (LFP)
AnwendungPrivathaushalt

Maße und Gewicht

Höhe620 mm
Breite200 mm
Länge675 mm
Gewicht70 kg
